Engine Wiring Harness, Battery Cables and Power Steering Pressure Hose
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

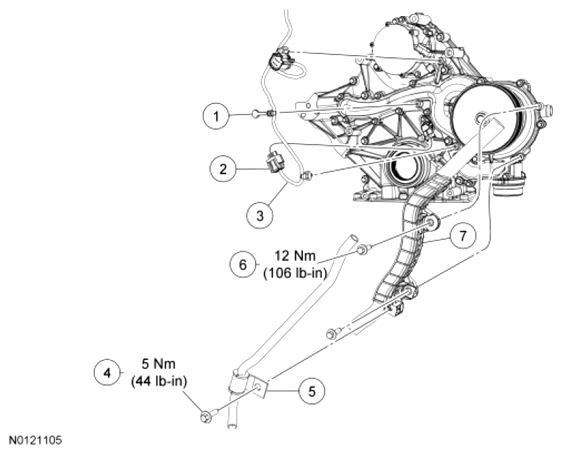

Fig 1: Engine Wiring Harness, Battery Cables, Power Steering Pressure Hose And Related Replacement Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Engine wiring harness retainer (3 required) (part of 12B637) |
| 2 | - | Crankshaft Position (CKP) sensor electrical connector (part of 12B637) |
| 3 | 12B637 | Engine wiring harness |
| 4 | W704310 | Power steering pressure hose bracket screw |
| 5 | - | Power steering pressure hose bracket (part of 3A719) |
| 6 | W500214 | Battery cable bracket bolt (2 required) |
| 7 | - | Battery cable bracket (part of 14B060) |
