Wiring Harness and Transmission Fluid Tubes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

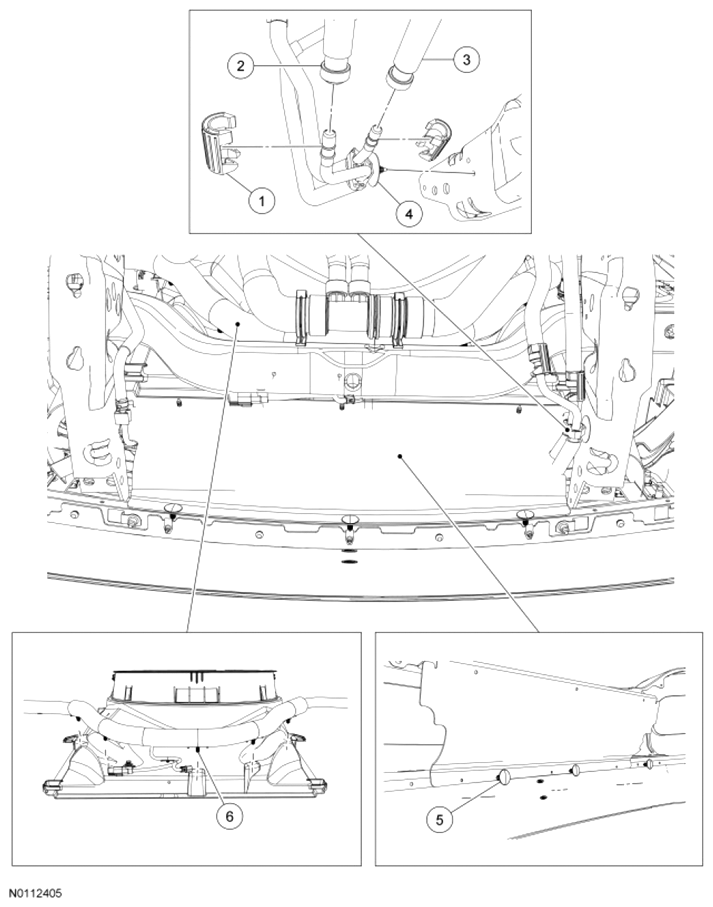

| Item | Part Number | Description |
|---|---|---|
| 1 | 7J081 | Transmission auxiliary fluid cooler tube quick connect coupling secondary latch (2 required) |
| 2 | 7A030 | Transmission auxiliary fluid cooler inlet tube |
| 3 | 7A031 | Transmission auxiliary fluid cooler outlet tube |
| 4 | - | Transmission auxiliary fluid cooler tube position retainer (part of 7H420) |
| 5 | W713661 | Lower air deflector pushpin (3 required) |
| 6 | 14E044 | Wiring harness retainer (6 required) |
