Wiring Harness Retainers with a Vacuum Reservoir - 6.2L

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

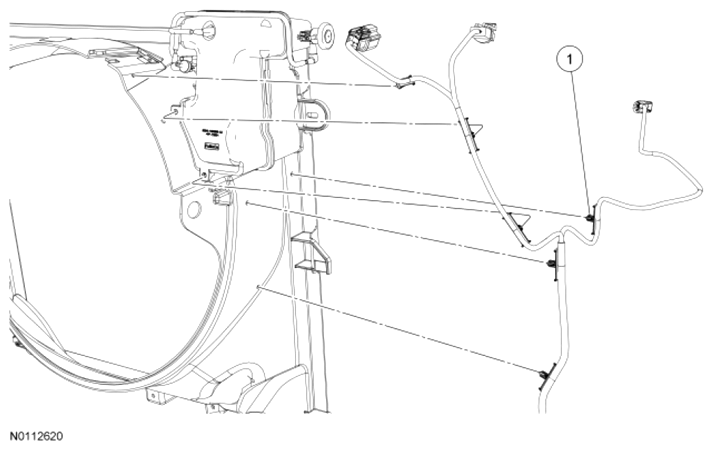

Fig 1: Identifying Wiring Harness Retainers With Vacuum Reservoir (6.2L)
G07481573Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Wiring harness retainer (part of 12A581) (6 required)
