Power Steering Fluid Reservoir and 6.2L Cooling Fan Clutch
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

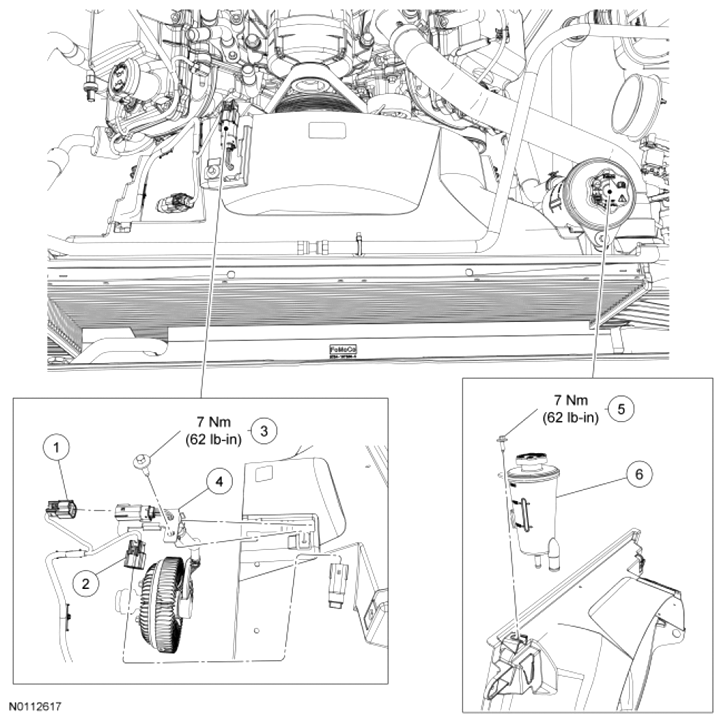

Fig 1: Power Steering Fluid Reservoir And 6.2L Cooling Fan Clutch Replacement Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Cooling fan clutch electrical connector (part of 12A581) (6.2L engines only) |
| 2 | 14A464 | Electronic Shift-On-The-Fly (ESOF) vacuum solenoid electrical connector (part of 12A581) (non-ESOF shown with dummy connector) |
| 3 | W503924 | Cooling fan clutch wiring bracket bolt (6.2L engines only) |
| 4 | - | Cooling fan clutch wiring bracket (part of 8A616) (6.2L engines only) |
| 5 | W503924 | Power steering fluid reservoir bolt |
| 6 | 3R700 | Power steering fluid reservoir |
