Coolant Pump - 6.2L: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
  2. Remove the cooling fan. Refer to COOLING FAN - 6.2L .

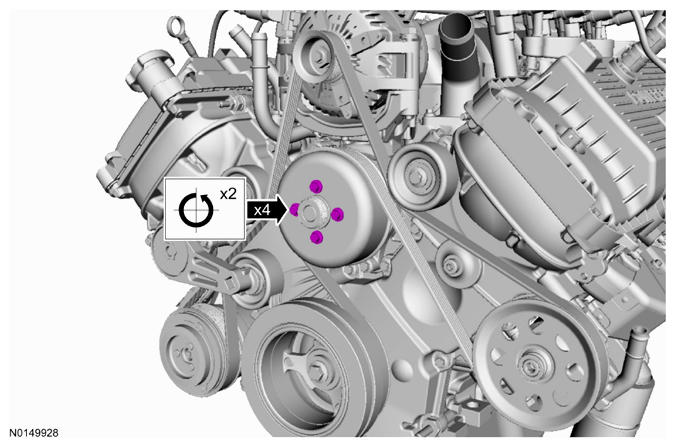

  3. G08598160
  4. Remove the accessory drive belt. Refer to ACCESSORY DRIVE .
  5. G08598161

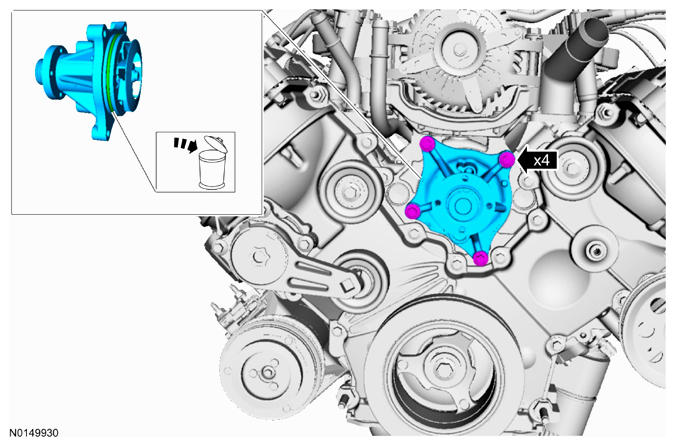

  6. G08598162
