Storage Compartment - Upper

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center upper instrument panel finish panel. Refer to INSTRUMENT PANEL FINISH PANEL - CENTER, UPPER .
  2. Remove the instrument panel speaker. Refer to INFORMATION AND ENTERTAINMENT SYSTEMS - SONY 8 INCH (203MM) TOUCHSCREEN .

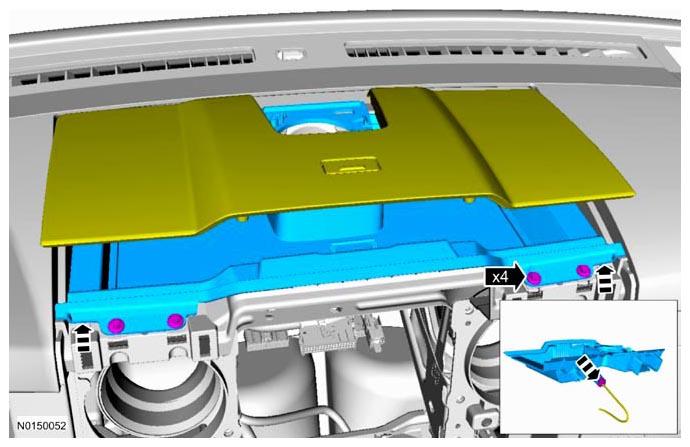

  3. Remove the 4 upper storage compartment bolts and the upper storage compartment.
    • Disconnect the electrical connector.
    • To install, tighten to 2.5 Nm (23 lb-in).
      G08596433

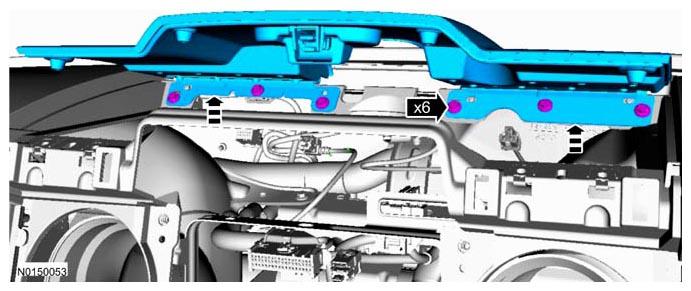

  4. Remove the 6 bolts and the upper storage compartment lid.
    • To install, tighten to 2.5 Nm (23 lb-in).
      G08596434
  5. To install, reverse the removal procedure.
