Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

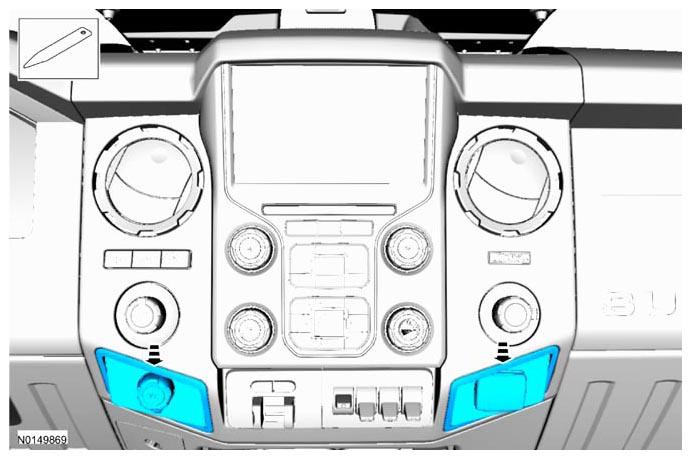

  1. Remove the upper instrument panel center finish panel screw covers.
    • If equipped, disconnect the electrical connectors.
      G08596422

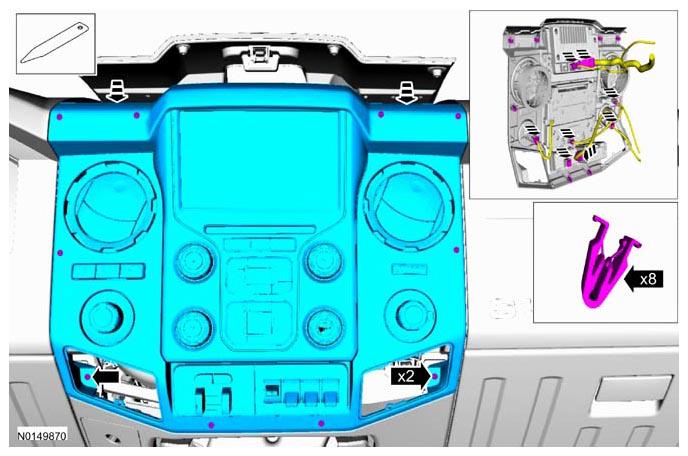

  2. Remove the 2 upper instrument panel center finish panel screws and the upper instrument panel center finish panel.
    • Disconnect the electrical connectors.
      G08596423
  3. To install, reverse the removal procedure.
    • Make sure the clear mylar anit-squeak tape is still on the LH edge.
