Instrument Panel Finish Panels and Fasteners
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

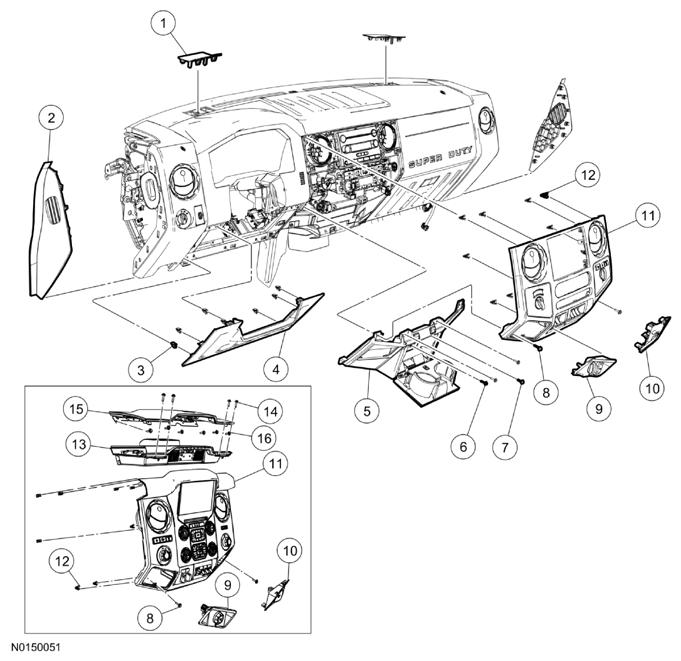

| Item | Part Number | Description |
|---|---|---|
| 1 | 043C54 | Instrument panel upper cowl bolt cover (2 required) |
| 2 | 4A78 RH/04481 LH | Instrument panel side trim panels |
| 3 | - | Steering column opening trim panel retaining clip (8 required) |
| 4 | 04459 | Steering column opening trim panel |
| 5 | 04608 | Lower instrument panel center finish panel |
| 6 | N805651 | Lower instrument panel center finish panel screw (2 required) |
| 7 | W707628 | Lower instrument panel center finish panel screw (2 required) |
| 8 | W707628 | Lower instrument panel center finish panel screw (2 required) |
| 9 | 047A82 | Upper instrument panel center finish panel screw cover |
| 10 | 044F46 | Upper instrument panel center finish panel screw cover |
| 11 | 04302 | Upper instrument panel center finish panel |
| 12 | - | Upper instrument panel center finish panel retaining clip (8 required) |
| 13 | 04338 | Instrument panel upper storage compartment |
| 14 | W707628 | Instrument panel upper storage compartment bolts (4 required) |
| 15 | 2506024 | Instrument panel upper storage compartment lid |
| 16 | W707628 | Instrument panel upper storage compartment lid bolts (6 required) |
