Battery and Battery Tray - Primary
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

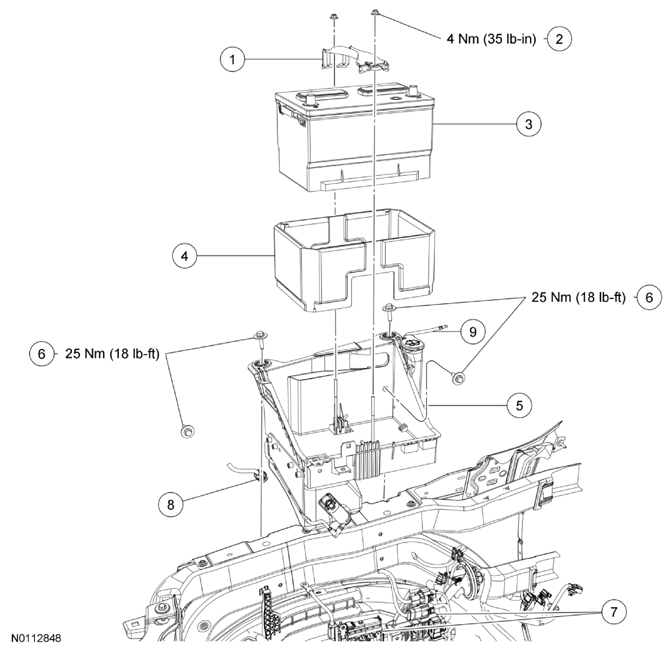

| Item | Part Number | Description |
|---|---|---|
| 1 | 10755 | Battery hold-down clamp |
| 2 | W701152 | Battery hold-down clamp nuts (2 required) |
| 3 | 10655 | Battery |
| 4 | 10A687 | Battery cover (if equipped) |
| 5 | 10723 | Battery tray |
| 6 | W701835 | Battery tray bolts (4 required) |
| 7 | - | Electrical junction boxes |
| 8 | - | Windshield washer motor electrical connector |
| 9 | - | Windshield washer supply hose |
NOTE:
Disconnect the battery(s). For additional information, refer to BATTERY DISCONNECT or BATTERY DISCONNECT - DUAL .
- Refer to the procedures and/or exploded views in this article for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
