Battery Cables - Gasoline
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

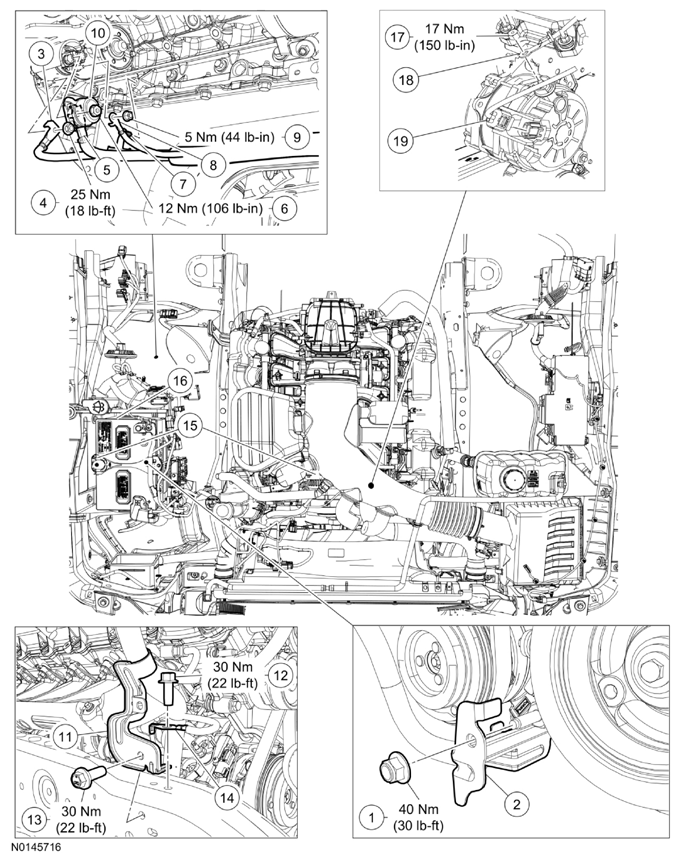

| Item | Part Number | Description |
|---|---|---|
| 1 | W520113 | Front engine cover battery ground cable bracket nut |
| 2 | - | Front engine cover battery ground cable bracket (part of 14B060) |
| 3 | - | Battery ground cable-to-starter eyelet (part of 14B060) |
| 4 | W711953 | Battery ground cable-to-starter eyelet nut |
| 5 | - | Starter solenoid positive cable terminal (part of 14B060) |
| 6 | W711953 | Starter solenoid positive cable terminal nut |
| 7 | - | Battery cable retaining pin (part of 14B060) |
| 8 | - | Starter solenoid wire terminal (part of 14B060) |
| 9 | W705790 | Starter solenoid wire terminal nut |
| 10 | - | Starter solenoid terminal cover (part of 14B060) |
| 11 | - | Battery ground cable-to-frame bracket (part of 14B060) |
| 12 | W505274 | Battery ground cable-to-frame bolt |
| 13 | N605812 | Battery ground cable-to-frame bracket bolt |
| 14 | - | Battery ground cable-to-frame terminal (part of 14B060) |
| 15 | - | Harness retaining pins (part of 14B060) |
| 16 | - | Engine harness connectors (part of 14B060) |
| 17 | W711953 | Generator B+ terminal nut |
| 18 | - | Generator B+ terminal (part of 14B060) |
| 19 | - | Generator harness connector (part of 14B060) |
All Vehicles
- Disconnect the battery. Refer to BATTERY DISCONNECT .
- Remove the front engine cover battery ground cable bracket nut and position the bracket aside.
- To install, tighten to 40 Nm (30 lb-ft).
6.8L vehicles
- Remove the Air Cleaner (ACL) outlet pipe. Refer to
INTAKE AIR DISTRIBUTION & FILTERING
.
6.2L vehicles
- Remove the air intake expansion resonator. Refer to
INTAKE AIR DISTRIBUTION & FILTERING
.
All Vehicles
- Remove the nut and position the generator B+ terminal aside.
- To install, tighten to 17 Nm (150 lb-in).
- Disconnect the generator electrical connector.
- Remove the battery ground cable-to-starter eyelet nut and position the battery ground cable-to-starter eyelet aside.
- To install, tighten to 25 Nm (18 lb-ft).
- Position the starter solenoid terminal cover aside.
- Remove the nut and position the starter solenoid positive cable terminal aside.
- To install, tighten to 12 Nm (106 lb-in).
- Remove the nut and position the starter solenoid wire terminal aside.
- To install, tighten to 5 Nm (44 lb-in).
- Remove the battery cable retaining pin from the engine block.
-
NOTE: It may be necessary to position the RH splash shield aside to access the battery ground cable bolt.
Remove the battery ground cable-to-frame bolt and position the battery ground cable-to-frame terminal aside.
- To install, tighten to 30 Nm (22 lb-ft).
- Remove the battery ground cable-to-frame bracket bolt.
- To install, tighten to 30 Nm (22 lb-ft).
- Disconnect the engine harness electrical connectors.
- Release the harness retaining pins and remove the cable.
- To install, reverse the removal procedure.
