Battery Cables - Diesel: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

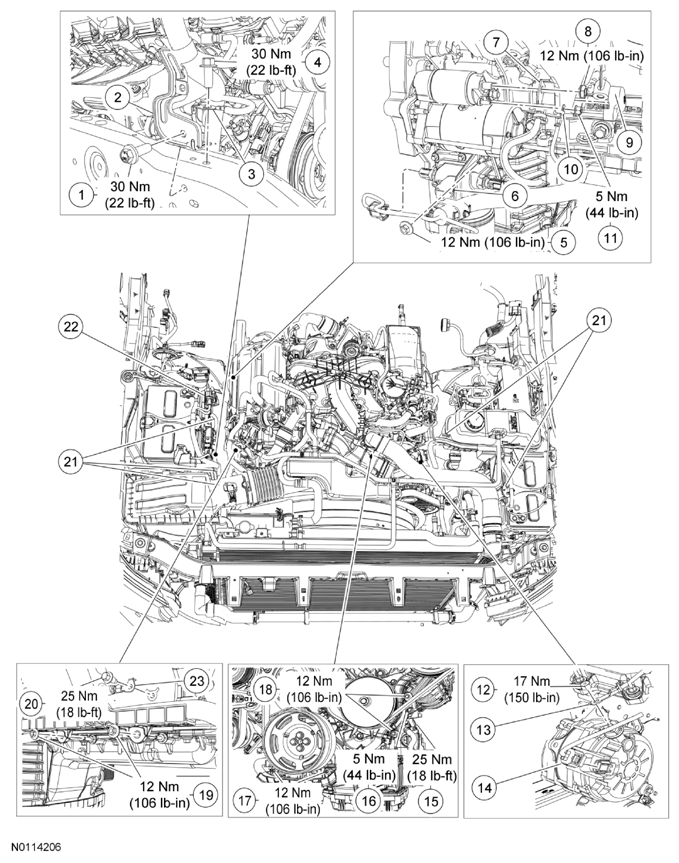

| Item | Part Number | Description |
|---|---|---|
| 1 | N605812 | Battery ground cable-to-frame bracket bolt |
| 2 | - | Battery ground cable-to-frame bracket (part of 14B060) |
| 3 | - | Battery ground cable-to-frame eyelet (part of 14B060) |
| 4 | W505274 | Battery ground cable-to-frame bolt |
| 5 | W701694 | Positive battery cable-to-engine bracket nut |
| 6 | - | Battery positive cable-to-engine bracket (part of 14B060) |
| 7 | - | Starter solenoid positive cable terminal (part of 14B060) |
| 8 | W710959 | Starter solenoid positive cable terminal nut |
| 9 | 11N087 | Starter solenoid terminal cover |
| 10 | - | Starter solenoid wire terminal (part of 14B060) |
| 11 | W705790 | Starter solenoid wire terminal nut |
| 12 | W711953 | Generator B+ terminal nut |
| 13 | - | Generator B+ terminal (part of 14B060) |
| 14 | - | Generator harness connector (part of 14B060) |
| 15 | W500221 | Secondary battery ground cable-to-engine terminal bolt |
| 16 | W704310 | Pressure line bracket-to-battery cable shield bolt |
| 17 | W701694 | Secondary battery harness retainer nuts (2 required) |
| 18 | W500214 | Secondary battery harness retainer bolts (2 required) |
| 19 | W701694 | Positive battery cable-to-engine harness retainer nuts |
| 20 | W500221 | Battery ground cable-to-engine block bolt |
| 21 | - | Battery cable locator pins (part of 14B060) |
| 22 | - | Vehicle harness connectors (part of 14B060) |
| 23 | - | Battery ground cable terminal (part of 14B060) |
