Rear Door Handles, Locks and Latches - Exploded View, SuperCab
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH door shown, RH door similar.

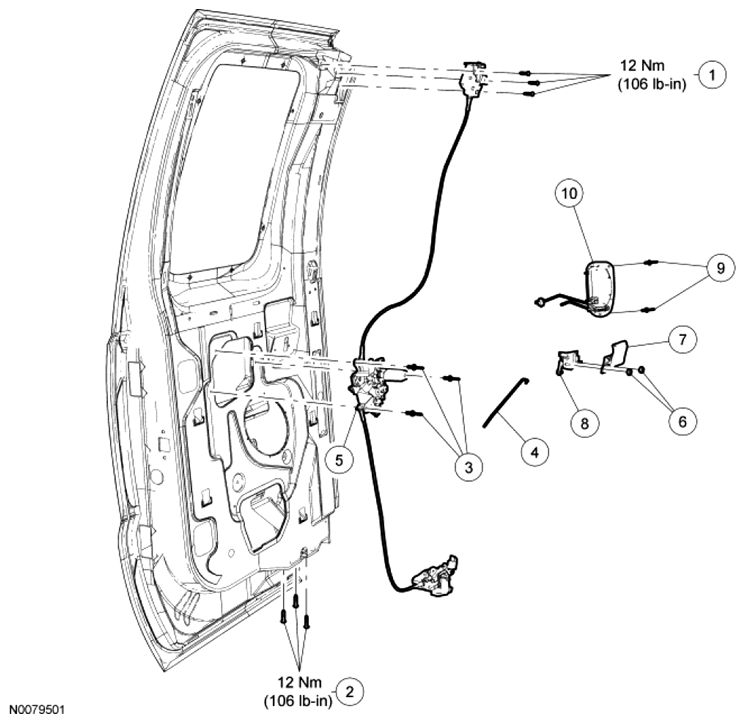

Fig 1: Exploded View Of Rear Door Handles, Door Locks And Door Latches With Torque Specifications (SuperCab)
| Item | Part Number | Description |
|---|---|---|
| 1 | W714092 | Upper door latch screws (3 required) |
| 2 | N811471 | Lower door latch screws (3 required) |
| 3 | W525172 | Remote control rivets (3 required) |
| 4 | 26442 | Interior door handle actuating rod |
| 5 | 264A00/264A01 | Remote control (RH/LH) |
| 6 | W620391 | Interior door handle nuts (2 required) |
| 7 | 22600/22601 | Interior door handle (RH/LH) |
| 8 | 18431A42/28431A43 | Interior door handle remote control (RH/LH) |
| 9 | W705711 | Exterior door handle rivets (2 required) |
| 10 | 2826604/2826605 | Exterior door handle (RH/LH) |
- For additional information, refer to the procedures in this article.
