Rear Door Handles, Locks and Latches - Exploded View, Crew Cab
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH door shown, RH door similar.

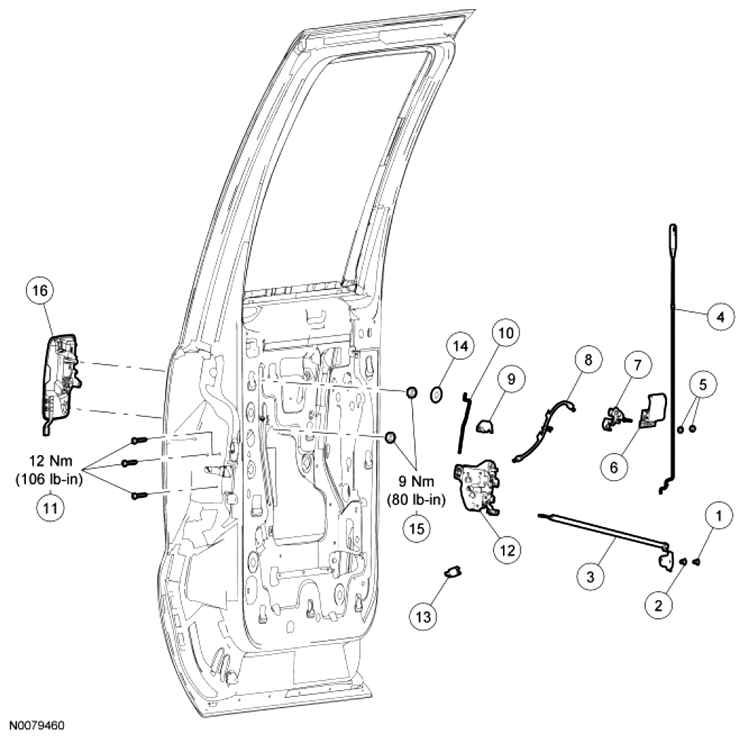

Fig 1: Exploded View Of Rear Door Handles, Door Locks And Door Latches With Torque Specifications (Crew Cab)
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Door lock actuating rod bellcrank rivet |
| 2 | 6529A38 | Door lock actuating rod bellcrank bushing |
| 3 | 2626448/2626449 | Door lock actuating rod and bellcrank (RH/LH) |
| 4 | 2626460 | Push button rod |
| 5 | W620391 | Interior door handle nuts (2 required) |
| 6 | 2522600/2522601 | Interior door handle (RH/LH) |
| 7 | 2521818/2521819 | Interior door handle remote control (RH/LH) |
| 8 | 26266A46 | Interior door handle actuating cable |
| 9 | 15221A06/15221A07 | Interior door handle actuating cable water seal (RH/LH) |
| 10 | 2522152/2522153 | Exterior door handle actuating rod (RH/LH) |
| 11 | N811471 | Door latch screws (3 required) |
| 12 | 1626412/1626413 | Door latch (RH/LH) |
| 13 | - | Door latch electrical connector (part of 14A005) |
| 14 | - | Body plug |
| 15 | - | Exterior door handle nuts (2 required) |
| 16 | 3626604/3626605 | Exterior door handle (RH/LH) |
- For additional information, refer to the procedures in this article.
