Seat Cushion Heater Mat: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in SERVICE INFORMATION . Failure to follow this instruction may result in serious personal injury.

NOTE: 60 percent shown, 40 percent seat similar.

NOTE: Removal steps in this procedure may contain installation details.

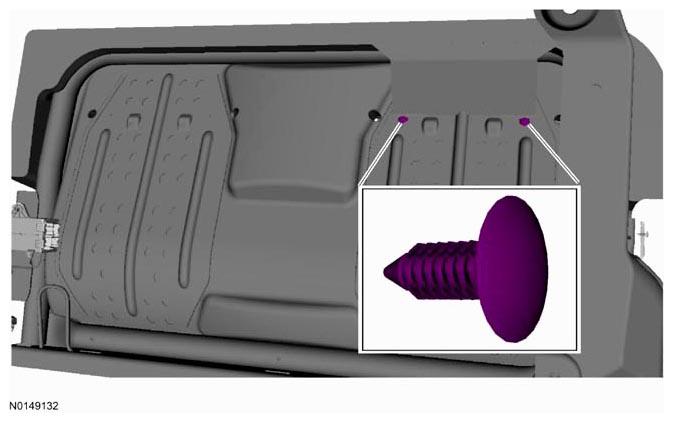

Remove the seat cushion. Refer to SEAT CUSHION - REAR, CREW CAB

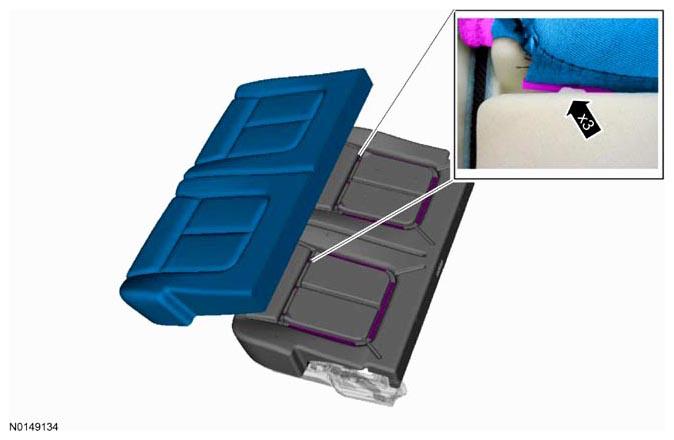

NOTE: Use care when separating the seat cushion trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat cushion foam pad.

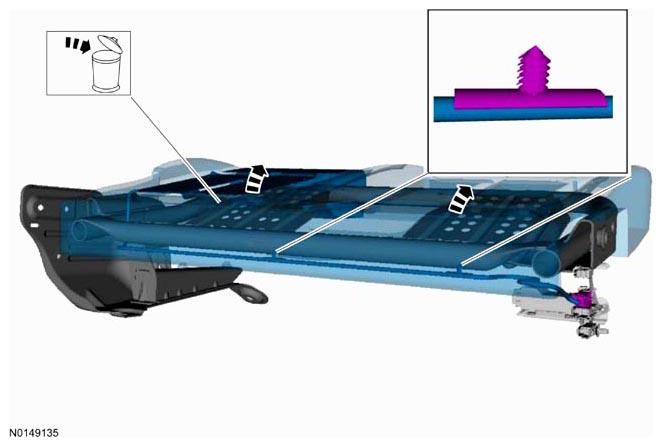

NOTE: Do not reuse the heater mat or the cushion foam.

NOTE: Follow the unique instructions or graphic for this step in the installation.
