Seat Backrest Heater Mat - Rear: Removal
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Before beginning any service procedure in this article, refer to Safety Warnings in
SERVICE INFORMATION
. Failure to follow this instruction may result in serious personal injury.
NOTE:
60 percent shown, 40 percent similar.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the seat. Seat - Rear, Crew Cab
- Remove the head restraint guide sleeve(s). Head Restraint Guide Sleeve
-
NOTE: Use care when separating the seat cushion trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat cushion foam pad.
-

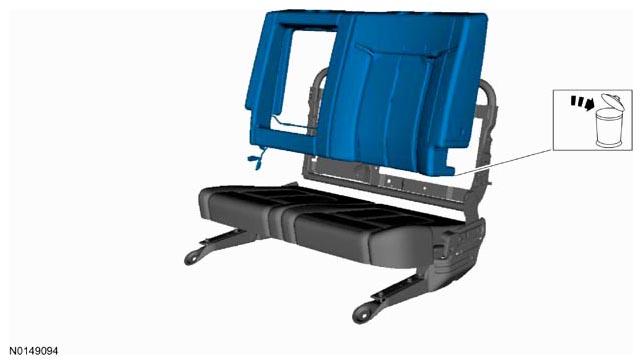

NOTE: Do not reuse the heater mat or the cushion foam.NOTE: Follow the unique instructions or graphic for this step in installation/assembly
