Seat - Front, 20 Percent: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seats. For additional information, refer to SEAT - FRONT, BUCKET SEAT .
  2. For seats with under seat storage, pry up and remove the utility tray.
  3. For seats without under seat storage, disengage the pin-type retainers and lift the cushion cover and foam pad to access the front retainers.

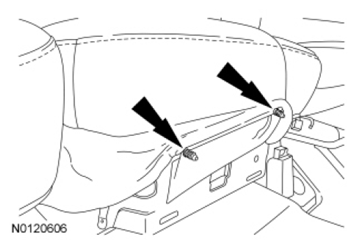

    Fig 1: Locating Cushion Cover Pin-Type Retainers
    G07485890Courtesy of FORD MOTOR CO.
  4. Complete the removal by referring to the exploded view.
