SuperCab Bench Seat Cushion
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

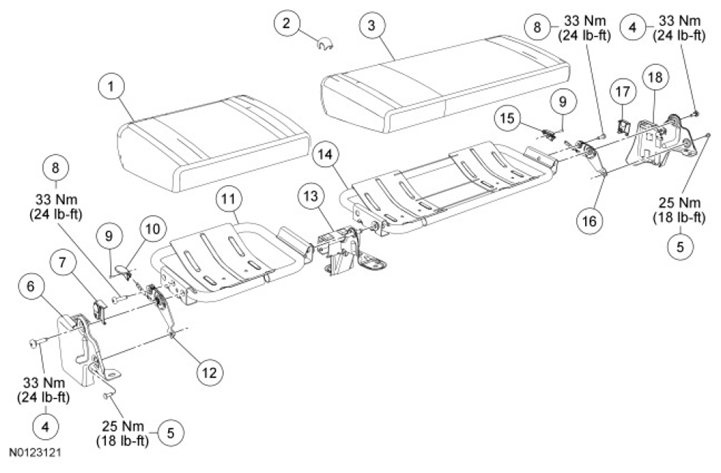

Fig 1: Rear Seat Cushion Replacement Components With Torque Specifications (SuperCab Bench Seat Cushion)
| Item | Part Number | Description |
|---|---|---|
| 1 | 63805/63841 | 40 percent cushion trim cover/40 percent cushion foam pad |
| 2 | - | Pivot cover |
| 3 | 63804/63840 | 60 percent cushion trim cover/60 percent cushion foam pad |
| 4 | 600A58 | Upper support-to-latch bolts (2 required) |
| 5 | N806910 | Lower support-to-latch bolts (2 required) |
| 6 | 60693 | LH support |
| 7 | 61351 | LH latch cover |
| 8 | 600A58 | Latch-to-cushion frame bolts (2 required) |
| 9 | 600A58 | Screws |
| 10 | 61737 | LH latch handle cover |
| 11 | 63161 | 40 percent cushion frame |
| 12 | 61383 | LH latch |
| 13 | 60692 | Center support |
| 14 | 63160 | 60 percent cushion frame |
| 15 | 61736 | RH latch handle cover |
| 16 | 61382 | RH latch |
| 17 | 61350 | RH latch cover |
| 18 | 60692 | RH support |
