Heated Seat Switch: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

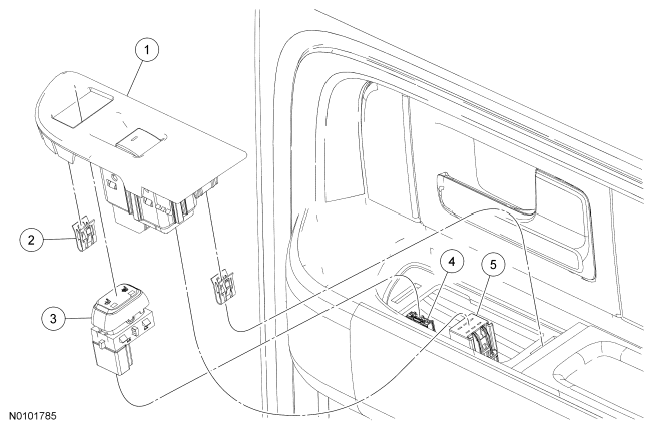

RH shown, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14528 RH/14527 LH | Window control switch bezel |
| 2 | W705289 | Retainer (2 required) |
| 3 | 14D694 RH/14D695 LH | Heated seat switch |
| 4 | - | Heated seat switch electrical connector (part of 14630 RH/14631 LH) |
| 5 | - | Window control switch electrical connector (part of 14630 RH/14631 LH) |
