Bucket Seat Backrest without Power
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to the INSTALLATION steps in this procedure for recliner-to-seat track bolt tightening sequence and specification.

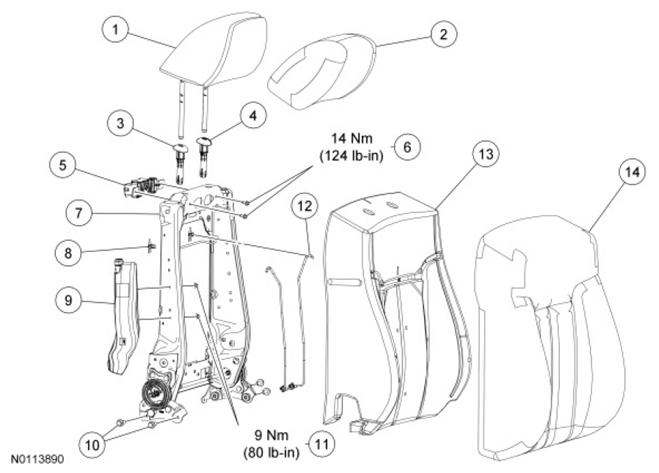

Fig 1: Front Seat Backrest Replacement Components With Torque Specifications (Bucket Seat Backrest Without Power)
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Head restraint |
| 2 | 610A62 | Head restraint cover |
| 3 | 610A18 | Head restraint guide sleeve (non-locking) |
| 4 | 610A16 | Head restraint guide sleeve (locking) |
| 5 | 16279 | Damper (All Crew Cab manual passenger seats and all F450 passenger seats with power lumbar) |
| 6 | W704621 | Damper-to-backrest frame bolts (All Crew Cab manual passenger seats and all F450 passenger seats with power lumbar) |
| 7 | 61018 | Backrest frame |
| 8 | W790133 | Static lumbar clip (2 required) (if equipped) |
| 9 | 611D10 RH/611D11 LH | Side air bag module (if equipped) |
| 10 | W500433 | Recliner-to-seat track bolts (4 required) |
| 11 | W520111 | Side air bag module nuts (if equipped) |
| 12 | 64842 | Static lumbar (if equipped) |
| 13 | 64810 RH/64811 LH | Backrest foam pad |
| 14 | 64416 RH/64417 LH | Backrest cover |
