20 Percent Seat Cushion/Storage Bin
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

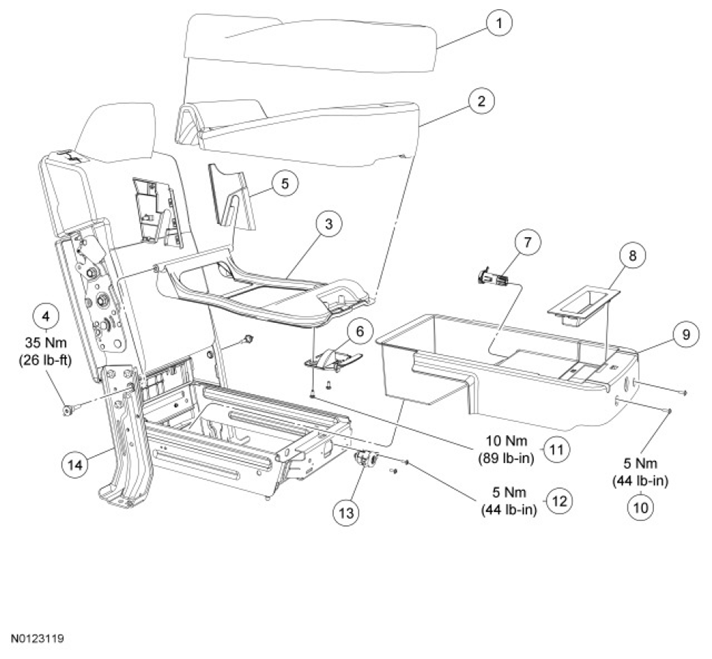

Fig 1: Front Seat Cushion And Related Replacement Components With Torque Specifications (20 Percent Seat Cushion/Storage Bin)
| Item | Part Number | Description |
|---|---|---|
| 1 | 62900 | Cushion cover |
| 2 | 632A22 | Cushion foam pad |
| 3 | 60336 | Cushion frame |
| 4 | W714277 | Cushion pivot bolts (2 required) |
| 5 | 61692 RH/61693 LH | LH/RH inboard cover |
| 6 | 454A48 | Storage bin release handle (if equipped) |
| 7 | 19N236/15K040 | Power point/bezel (if equipped) |
| 8 | 13530 | Utility tray (if equipped) |
| 9 | 115A00 | Cushion storage bin (if equipped) |
| 10 | W790254 | Storage bin screws (2 required) (if equipped) |
| 11 | W714751 | Storage bin release handle screws (2 required) (if equipped) |
| 12 | W790254 | Lock cylinder-to-support assembly screws (2 required) (if equipped) |
| 13 | 06082/60328/21971 | Bracket/lock cylinder/lever (if equipped) |
| 14 | 61708 | Support assembly |
