Cowl Side Trim Panel

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Left side shown, right side similar.

Regular Cab and Crew Cab

NOTE: To avoid damage to the scuff plate trim panel, remove any retaining clips from the body and attach to the scuff plate trim panel before installing.

Remove the door opening scuff plate trim panel.

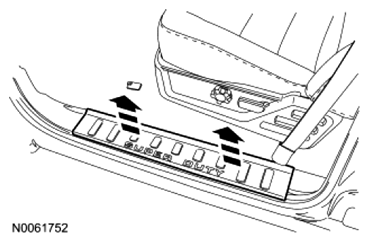

Fig 1: Removing Door Opening Scuff Plate Trim Panel
Courtesy of FORD MOTOR CO.

SuperCab
NOTE: To avoid damage to the scuff plate trim panel, remove any retaining clips from the body and attach to the scuff plate trim panel before installing.

Lift upward and partially remove the front of the door opening scuff plate trim panel.

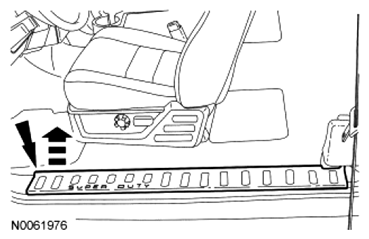

Fig 2: Removing Front Of Door Opening Scuff Plate Trim Panel
Courtesy of FORD MOTOR CO.

All vehicles
If equipped, remove the pushpin retainer.
Remove the cowl side trim panel.
To install, reverse the removal procedure.
