Special Tool(s)
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Remover, Differential Bearing 205-008 (T57L-4220-A) |
|
| Remover, Steering Arm 211-003 (T64P-3590-F) |

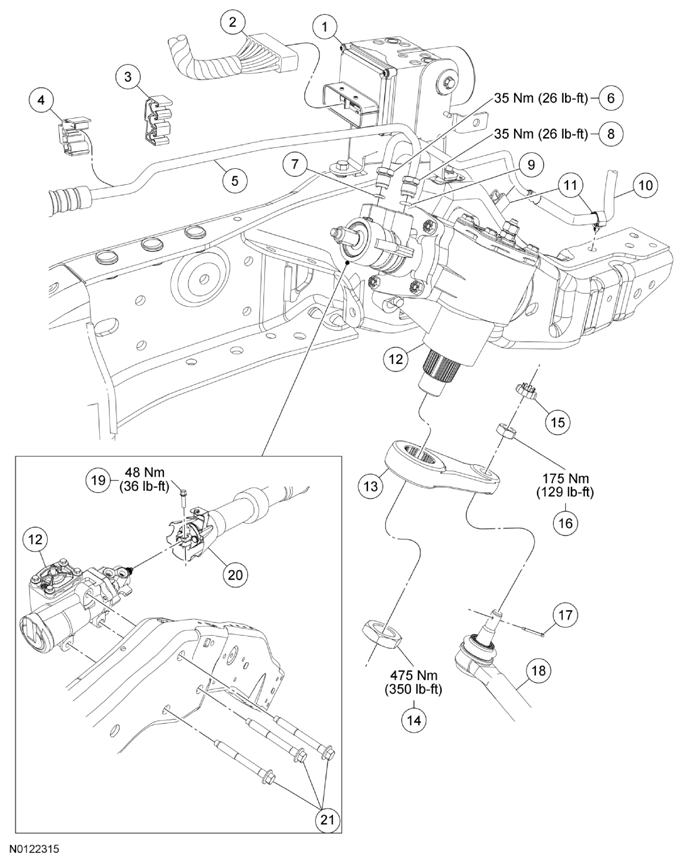

NOTE:
F-250/350 shown, F-450/550 similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 2C186 | Hydraulic Control Unit (HCU) |
| 2 | - | ABS module electrical connector (part of 14405) |
| 3 | 85160 | Pressure line retainer |
| 4 | - | Pressure line retainer (part of 3A717) |
| 5 | 3A719 | Pressure line |
| 6 | - | Return hose-to-steering gear fitting (part of 3A713) |
| 7 | 98005 | O-ring seal |
| 8 | - | Pressure line-to-steering gear fitting (part of 3A719) |
| 9 | 98005 | O-ring seal |
| 10 | 3A713 | Return hose |
| 11 | 3A713 | Pressure line retainers (2 required) |
| 12 | 3504 | Steering gear |
| 13 | 3590 | Sector shaft arm |
| 14 | W709296 | Sector shaft arm-to-sector shaft nut |
| 15 | W710907 | Nut retainer cap |
| 16 | 712367 | Inner drag link-to-sector shaft arm nut |
| 17 | N642569 | Cotter pin |
| 18 | 3B406 | Drag link |
| 19 | N803942 | Lower steering column shaft-to-steering gear bolt |
| 20 | 3F540 | Steering gear shield |
| 21 | W711886 | Steering gear bolts (3 required) (F-250, 350 and F450 Pickup) |
| 21 | W711913 | Steering gear bolts (3 required) (F-450/550 Chassis Cab) |
