Brake Pedal and Bracket: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

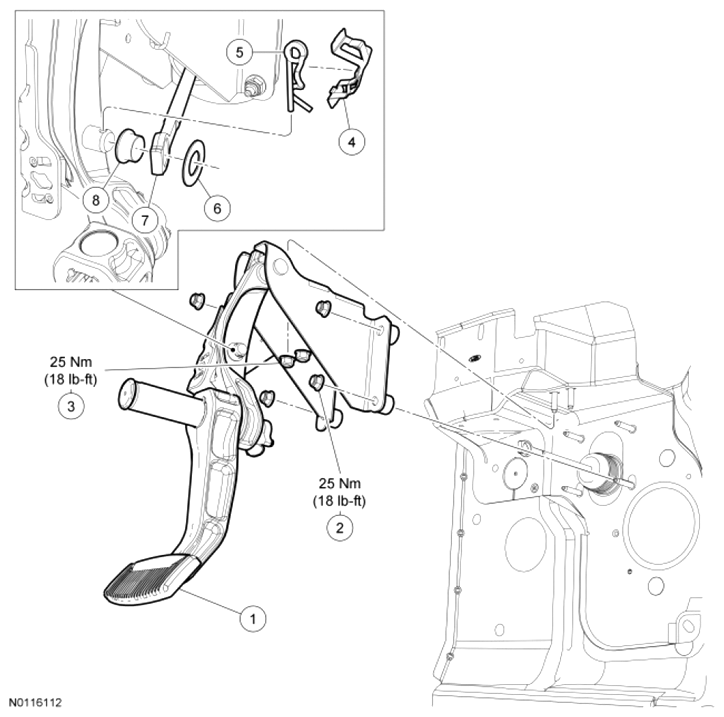

Adjustable pedal shown, fixed pedal similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 2455 | Brake pedal and bracket |
| 2 | W520112 | Brake booster nuts (4 required) |
| 3 | W711468 | Brake pedal bracket-to-column brace nuts (2 required) |
| 4 | 3757 | Cotter pin clip |
| 5 | 380699 | Brake pedal cotter pin |
| 6 | 2L364 | Spacer |
| 7 | - | Brake booster push rod (part of 2005) |
| 8 | 2474 | Brake pedal bushing |
