Parking Brake Shoes: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

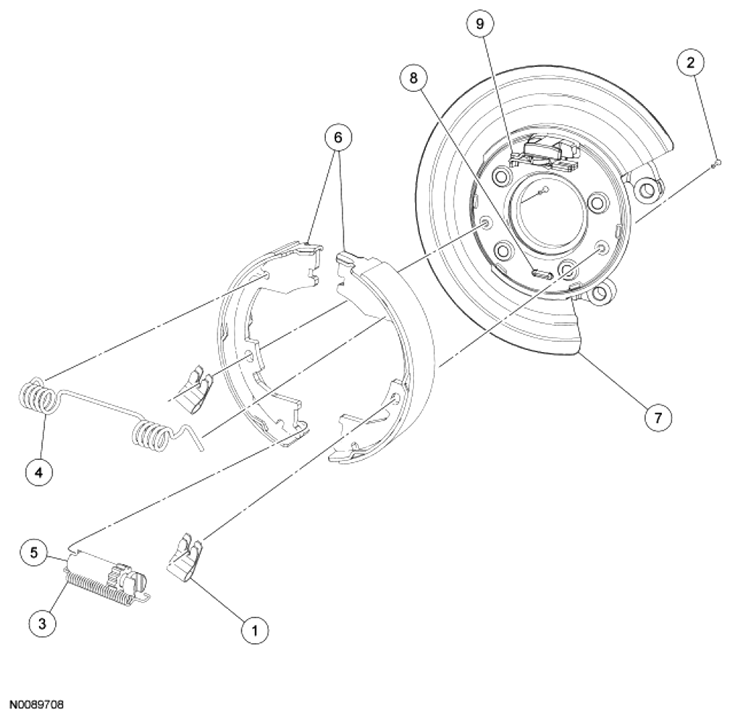

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake shoe hold-down clip (part of 2069 hardware kit) (2 required) |
| 2 | - | Brake shoe hold-down pin (part of 2069 hardware kit) (2 required) |
| 3 | - | Lower brake shoe retaining spring (part of 2069 hardware kit) |
| 4 | - | Upper brake shoe retaining spring (part of 2069 hardware kit) |
| 5 | 2041 | Brake shoe adjusting screw |
| 6 | 2648 | Brake shoe kit |
| 7 | 2B636 | Backing plate |
| 8 | 2092 | Plug kit |
| 9 | 2A637 | Link and lever kit |
