Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the tension on the parking brake system. For additional information, refer to PARKING BRAKE CABLE TENSION RELEASE .
  2. Disconnect the parking brake switch electrical connector.

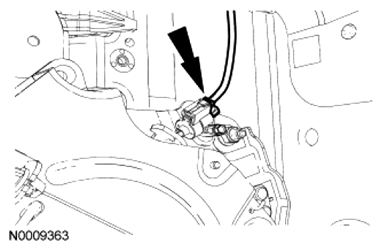

    Fig 1: Locating Parking Brake Switch Electrical Connector
    G06777680Courtesy of FORD MOTOR CO.
  3. Disconnect the parking brake release handle cable and conduit from the parking brake control.

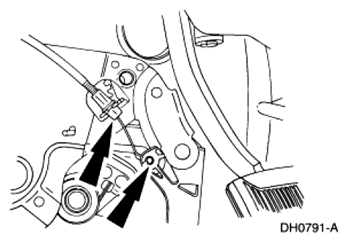

    Fig 2: Locating Parking Brake Release Handle Cable And Conduit
    G06777681Courtesy of FORD MOTOR CO.
  4. Remove the 3 parking brake control nuts and position the parking brake control aside.
    • To install, tighten to 25 Nm (18 lb-ft).
  5. Disconnect the hood release cable from the hood release handle.
  6. Position the parking brake cable and conduit grommet through the floor pan and remove the parking brake control.
  7. To install, reverse the removal procedure.
