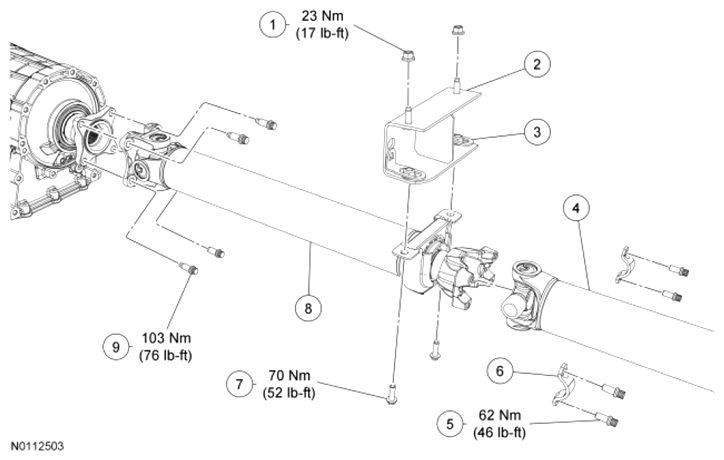

Driveshaft - Rear, Three-Piece (View 1 of 2)
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 33771 | Forward center bearing support bracket nuts (2 required) |
| 2 | 4831 | Forward center bearing support bracket |
| 3 | 381984 | Forward center bearing support nut (2 required) |
| 4 | - | Center driveshaft (part of 4R602) |
| 5 | 4N272 | U-joint bearing strap bolt (4 required) |
| 6 | 4A254 | U-joint bearing strap (2 required) |
| 7 | 56761 | Driveshaft center bearing support bolt (2 required) |
| 8 | - | Forward driveshaft (part of 4R602) |
| 9 | N811880 | Driveshaft flange bolt (4 required) |
