Driveshaft Slip Yoke: Disassembly

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driveshaft from the vehicle. For additional information, refer to DRIVESHAFT - EXPLODED VIEW .
  2. NOTE: Do not clamp the driveshaft in the jaws of a vise or a similar holding fixture.

    Place the driveshaft on a suitable workbench.

  3. Index-mark the driveshaft slip yoke and the stub shaft.
    Fig 1: Locating Index-Mark On Driveshaft Slip Yoke And Stub Shaft
    G06776568Courtesy of FORD MOTOR CO.
  4. Remove the driveshaft slip yoke.
    1. Cut and discard the 2 driveshaft slip yoke boot clamps.
    2. Separate the driveshaft slip yoke from the stub shaft.

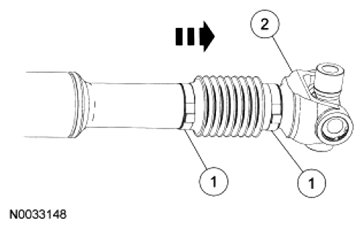

      Fig 2: Removing Driveshaft Slip Yoke
      G06776569Courtesy of FORD MOTOR CO.
  5. Remove and discard the driveshaft slip yoke boot.

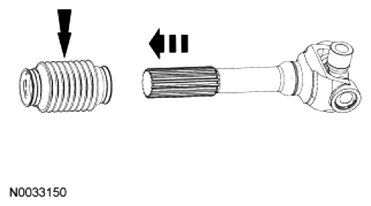

    Fig 3: Removing Driveshaft Slip Yoke Boot
    G06776570Courtesy of FORD MOTOR CO.
  6. Check the lubricant for contamination. If the lubricant feels gritty, clean and inspect the stub shaft and driveshaft slip yoke for wear. Install new components as necessary.

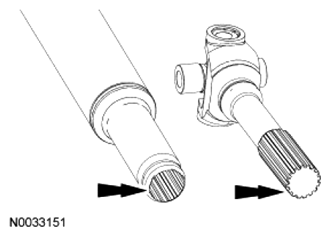

    Fig 4: Inspecting Stub Shaft And Driveshaft Slip Yoke
    G06776571Courtesy of FORD MOTOR CO.
