Driveshaft Slip Yoke: Assembly

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

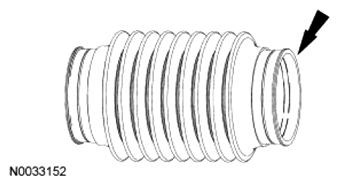

Fill the driveshaft slip yoke boot with approximately 10 g (0.36 oz.) of grease.

Fig 1: Locating Driveshaft Slip Yoke Boot
Courtesy of FORD MOTOR CO.
Position the driveshaft slip yoke boot clamp on the stub shaft.

Fig 2: Positioning Driveshaft Slip Yoke Boot Clamp On Stub Shaft
Courtesy of FORD MOTOR CO.

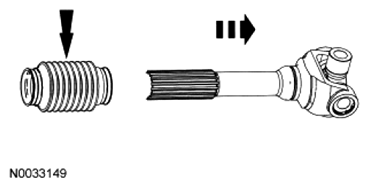

Slide the driveshaft slip yoke boot over the stub shaft, and seat it in the boot groove.

Fig 3: Sliding Driveshaft Slip Yoke Boot Over Stub Shaft
Courtesy of FORD MOTOR CO.

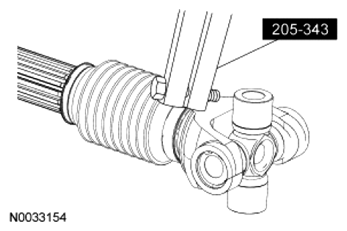

Using the Constant Velocity Joint Boot Clamp Installer, install the driveshaft slip yoke boot clamp.

Fig 4: Installing Driveshaft Slip Yoke Boot Clamp
Courtesy of FORD MOTOR CO.

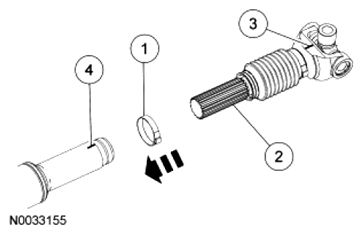

Install the driveshaft slip yoke.
1. Position the driveshaft slip yoke boot clamp.
2. Lubricate the stub shaft splines with grease.
3. Align the index marks and install the driveshaft slip yoke.
4. Seat the driveshaft slip yoke boot in the boot groove.

  Fig 5: Installing Driveshaft Slip Yoke
  Courtesy of FORD MOTOR CO.
Remove all excess grease from the slip yoke boot and the slip yoke.

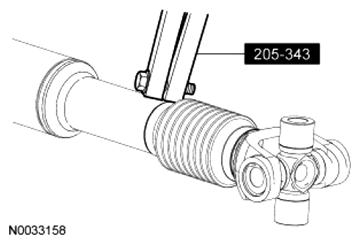

Using the Constant Velocity Joint Boot Clamp Installer, install the opposing driveshaft slip yoke boot clamps. Tighten the tool until the clamp is secure.

Fig 6: Installing Driveshaft Slip Yoke Boot Clamps
Courtesy of FORD MOTOR CO.
Remove all excess grease from the slip yoke boot and the slip yoke.
