Driveshaft - Rear, One-Piece Four-Wheel Drive (4WD) With Double Cardan Joint
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

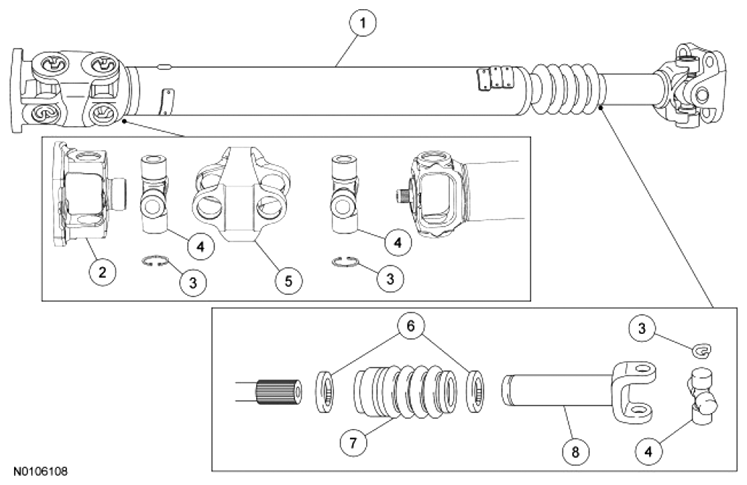

Fig 1: Identifying Rear Driveshaft Related Components - One-Piece Four-Wheel Drive (4WD) With Double Cardan Joint
| Item | Part Number | Description |
|---|---|---|
| 1 | 4602 | Driveshaft |
| 2 | - | Driveshaft centering socket yoke (part of 4602) |
| 3 | - | Snap rings (part of 4635) |
| 4 | 4635 | U-joint assembly |
| 5 | - | Driveshaft center yoke (part of 4602) |
| 6 | - | Driveshaft slip yoke boot clamps (part of 4421) |
| 7 | - | Driveshaft slip yoke boot (part of 4421) |
| 8 | 4841 | Driveshaft slip yoke |
