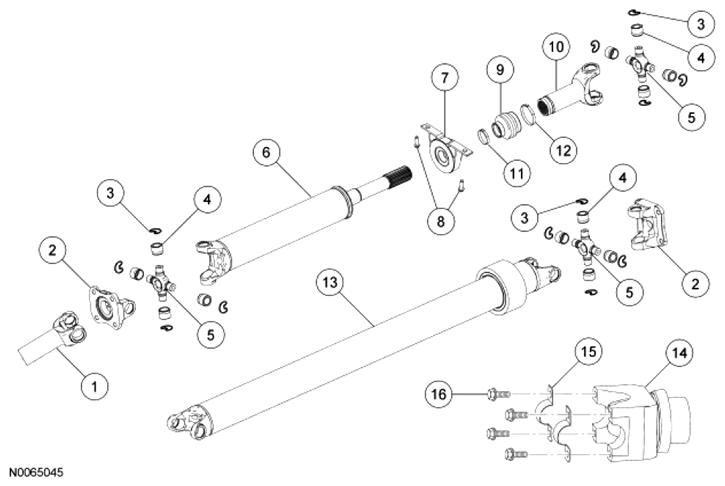

Driveshaft - Rear, 2-Piece
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 4841 | Driveshaft slip yoke |
| 2 | 4865 | Driveshaft circular flange yokes |
| 3 | - | Snap rings (part of 4635) |
| 4 | - | U-joint bearing caps (part of 4635) |
| 5 | - | U-joint spiders (part of 4635) |
| 6 | 4R602 | Driveshaft assembly |
| 7 | 4800 | Driveshaft center bearing support |
| 8 | 56761 | Driveshaft center bearing support bolts |
| 9 | - | Driveshaft slip yoke boot (part of 4421) |
| 10 | 4841 | Driveshaft slip yoke |
| 11 | 4K227 | Driveshaft slip yoke boot clamp (also part of 4421) |
| 12 | 4K227 | Driveshaft slip yoke boot clamp (also part of 4421) |
| 13 | 4R602 | Driveshaft assembly |
| 14 | 4851 | Pinion flange |
| 15 | 4A254 | U-joint bearing strap (2 required) |
| 16 | 4N272 | U-joint bearing strap bolt (4 required) |
