Axle Shaft Seal: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new knuckle seal onto the axle shaft.
    1. Position the knuckle seal onto the axle shaft.
    2. Using the Driver and Knuckle Seal Installer and a soft-faced hammer, seat the knuckle seal onto the axle shaft.

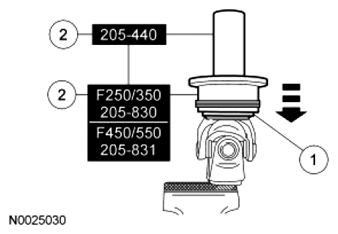

      Fig 1: Installing Knuckle Seal Onto Axle Shaft
      G06776400Courtesy of FORD MOTOR CO.
  2. Position the axle shaft into the shaft housing.
  3. Using the Driver and Knuckle Seal Installer with a soft-faced hammer, install the knuckle seal into the wheel knuckle.

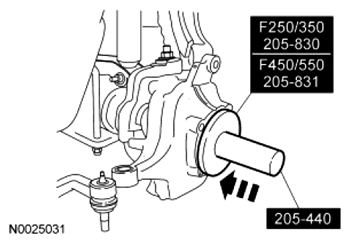

    Fig 2: Installing Knuckle Seal Into Wheel Knuckle Using Driver And Knuckle Seal Installer
    G06777416Courtesy of FORD MOTOR CO.
  4. Install the wheel bearing and hub assemblies. For additional information, refer to FRONT SUSPENSION - FOUR WHEEL DRIVE (4WD) .
