Axle and Differential Draining and Filling
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)
| Oil Suction Gun 303-D104 (D94T-9000-A) or equivalent |
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL (US); CXY-80W90-1L (Canada) |
WSP-M2C197-A |
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

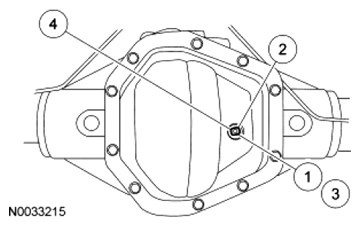

- Drain and refill the front axle lubricant.
- Remove the fill plug.
- Using an Oil Suction Gun, remove the axle lubricant through the fill hole.
- Fill the axle with the specified type and quantity of lubricant.
- Install the fill plug.
- Tighten to 27 Nm (20 lb-ft).
