Axle Shaft Universal Joint - Front: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Axle Shaft Seal. Refer to AXLE SHAFT SEAL .
  2. NOTE: If necessary, use a pair of pliers to remove a bearing cup that fails to press out all the way.

    Special Tool(s): Installer/Remover, C-Frame and Screw 205-086.

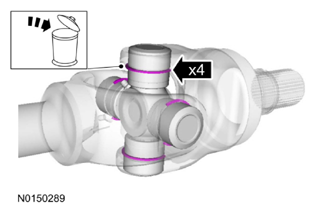

    G08601642
  3. Special Tool(s): Installer/Remover, C-Frame and Screw 205-086.
    G08601643

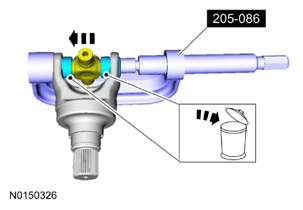

  4. G08601644

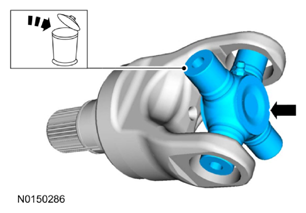

  5. G08601645

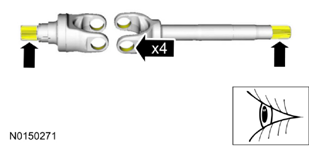

  6. G08601646
