Electronic Locking Differential (ELD) Field Coil: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

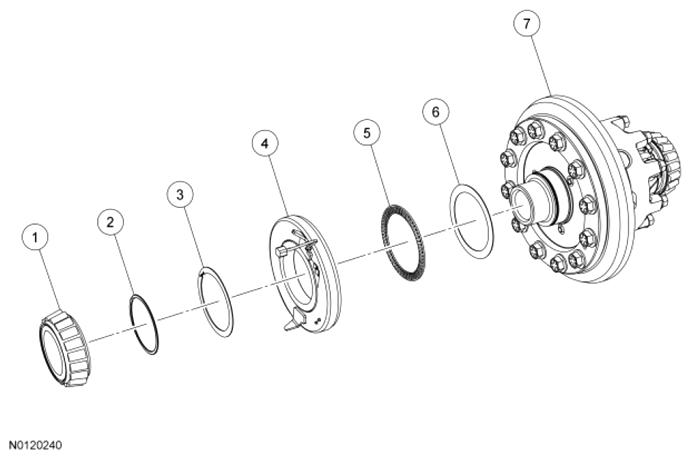

| Item | Part Number | Description |
|---|---|---|
| 1 | 4221 | Differential carrier bearing |
| 2 | - | Retaining ring (part of 4880) |
| 3 | - | Washer (part of 4880) |
| 4 | - | Electronic Locking Differential (ELD) coil (part of 4880) |
| 5 | - | Thrust bearing (part of 4880) |
| 6 | - | Thrust plate (part of 4880) |
| 7 | - | Differential ring gear and carrier assembly |
