Differential Case: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)
| Collets, Differential Carrier Bearing 205-430 (Part of 205-S419) |
|
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) or equivalent |
|
| Gauge, Clutch Housing 308-021 (T75L-4201-A) |
|
| Installer, Differential Carrier Bearing 205-D044 (D81T-4221-A) or equivalent |
|
| Installer, Differential Shim 205-228 (T85T-4067-AH) |
|
| Remover, Bearing Tube 308-052 (T77J-7025-B) |
|
| Remover Screw, Bearing Tube 308-092 (T84T-7025-B) |
|
| Retaining Ring, Differential Carrier Bearing 205-431 (Part of 205-S419) |
|
| Step Plate, Differential Carrier Bearing 205-432 (Part of 205-S419) |
MATERIAL
| Item | Specification |
|---|---|
| Clear Silicone Rubber TA-32 |
ESB-M4G92-A |
| Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) |
WSL-M2C192-A and GL-5 |

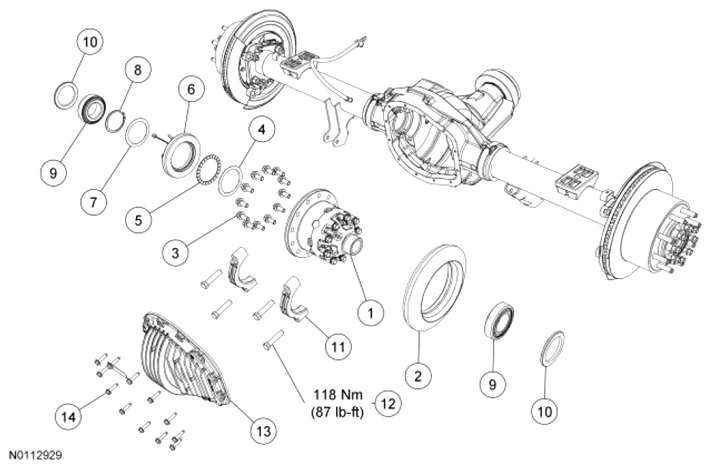

| Item | Part Number | Description |
|---|---|---|
| 1 | 4204 | Differential assembly |
| 2 | 4210 | Differential ring gear |
| 3 | 4216 | Differential ring gear bolt (12 required) |
| 4 | - | ELD thrust plate (part of 4880) |
| 5 | - | ELD thrust bearing (part of 4880) |
| 6 | - | ELD coil (part of 4880) |
| 7 | - | ELD washer (part of 4880) |
| 8 | - | ELD retaining ring (part of 4880) |
| 9 | 4220 | Differential carrier bearing and cup assembly (2 required) |
| 10 | 4067 | Differential carrier bearing shim (2 required) |
| 11 | 4224 | Differential bearing cap (part of 4010) (2 required) |
| 12 | 46157 | Differential bearing cap bolt (part of 4010) (4 required) |
| 13 | 4033 | Differential housing cover |
| 14 | 4346 | Differential housing cover bolt (12 required) |
