Differential Case and Ring Gear - Two-Piece, Conventional: Assembly

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position left differential case half (ring gear side) on the Differential Clutch Preload Gauge.
    Fig 1: Installing Left Differential Case Half On Differential Clutch Preload Gauge
    G07478708Courtesy of FORD MOTOR CO.
  2. Lubricate the differential side gears and the differential side gear thrust washers with long-life grease.
  3. Lubricate the differential pinion gears, pinion gear thrust washers and the differential pinion shaft with long-life grease.
  4. Install the left differential side gear and thrust washer.
    Fig 2: Locating Left Differential Side Gear And Thrust Washer
    G07478709Courtesy of FORD MOTOR CO.
  5. Install the differential pinion shaft and the differential pinion gears.
    Fig 3: Installing Differential Pinion Shaft And Differential Pinion Gears
    G07478710Courtesy of FORD MOTOR CO.
  6. Position the right differential case half with the right side gear and thrust washer.
    Fig 4: Installing Right Differential Case Half And Right Side Gear
    G07478711Courtesy of FORD MOTOR CO.
  7. With the index marks aligned, apply threadlock to the 9 differential case retaining bolts.
    Fig 5: Locating Differential Case Bolts
    G07478704Courtesy of FORD MOTOR CO.
  8. NOTE: Use the Drive Pinion Flange Holding Fixture as shown below to keep the differential case from turning.

    Install the 9 differential case retaining bolts.

    • Tighten to 63 Nm (46 lb-ft) and then tighten an additional 90 degrees.

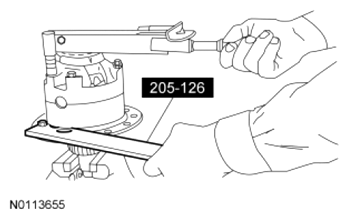

      Fig 6: Tightening Differential Case Retaining Bolts
      G07478713Courtesy of FORD MOTOR CO.
  9. Install the 12 new ring gear bolts.
    • Tighten to 63 Nm (46 lb-ft) and then tighten an additional 60 degrees.
      Fig 7: Locating Differential Ring Gear Bolts
      G07478450Courtesy of FORD MOTOR CO.
  10. Install the differential carrier. For additional information, refer to DIFFERENTIAL CARRIER .
