Differential Case and Ring Gear - Electronic Locking Differential (ELD): Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)
| Holding Fixture, Drive Pinion Flange 205-126 (T78P-4851-A) |
|
| Preload Gauge, Differential Clutch 205-447 |
MATERIAL
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

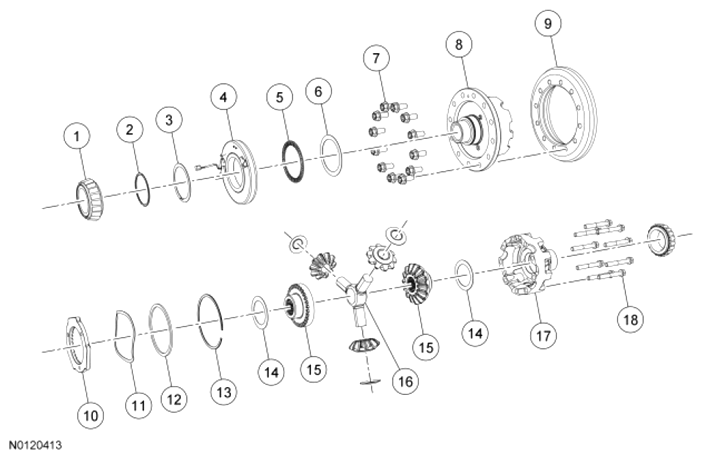

| Item | Part Number | Description |
|---|---|---|
| 1 | 4221 | Differential bearing (2 required) |
| 2 | - | Retaining ring (part of 4880) |
| 3 | - | Washer (part of 4880) |
| 4 | - | Electronic Locking Differential (ELD) field coil (part of 4880) |
| 5 | - | Thrust bearing (part of 4880) |
| 6 | - | Thrust plate (part of 4880) |
| 7 | 4216 | Differential ring gear bolt (12 required) |
| 8 | - | Differential case LH. (part of 4026) |
| 9 | 4209 | Differential ring gear (part of 3222) |
| 10 | - | ELD cam ring (part of 4026) |
| 11 | - | ELD wave spring (part of 4026) |
| 12 | - | ELD differential washer (part of 4026) |
| 13 | - | ELD cam retaining ring (part of 4026) |
| 14 | 4228 | Side gear thrust washer (part of 4026) (2 required) |
| 15 | - | Side gear (part of 4026) (2 required) |
| 16 | 4211 | Differential pinion spider shaft assembly (also part of 4026) |
| 17 | - | Differential case RH (part of 4026) |
| 18 | W714464 | Differential case bolt (part of 4026) (9 required) |
