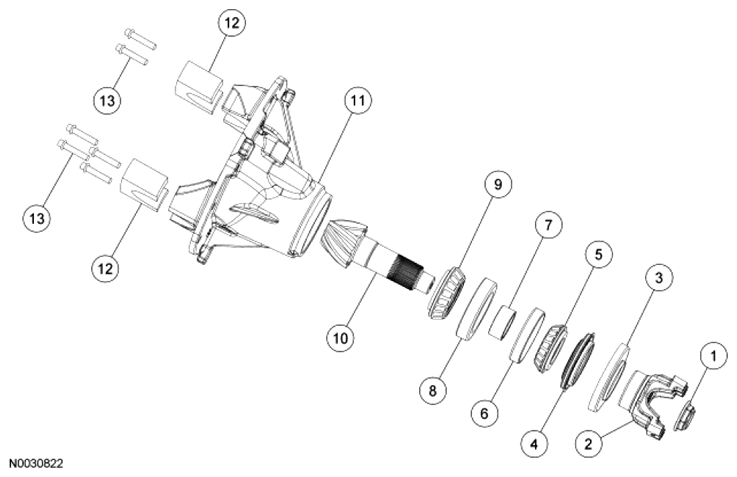

Dana S110 and S130 Rear Axle Pinion Assembly, Disassembled View: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 4320 | Pinion hex nut |
| 2 | 4851 | Pinion yoke |
| 3 | 4670 | Pinion oil seal slinger |
| 4 | 4676 | Pinion oil seal |
| 5 | 4630 | Outer pinion bearing |
| 6 | 4616 | Outer pinion bearing cup |
| 7 | 4537 | Pinion preload spacer (selective) |
| 8 | 4628 | Inner pinion bearing cup |
| 9 | 4621 | Inner pinion bearing |
| 10 | 4209 | Rear axle drive pinion |
| 11 | 4141 | Carrier housing |
| 12 | - | Differential bearing caps (part of 4141) |
| 13 | - | Differential bearing cap bolts (part of 4141) |
