Dana Model S130 Conventional Wheel Differential Assembly, Disassembled View: Disassembly

All axles

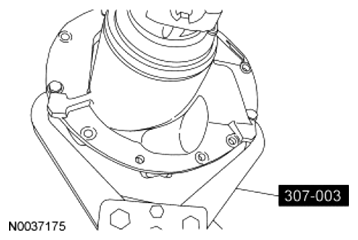

1. Using the Transmission Holding Fixture, mount the carrier housing.
   Fig 1: Mounting Carrier Housing Using Transmission Holding Fixture

   Courtesy of FORD MOTOR CO.
2. NOTE: If reusing the differential ring gear and pinion, measure and record the backlash before disassembly. Assembling the differential ring gear and pinion to the recorded backlash will match the established wear patterns. Hand-rolled patterns will cover less area than the established patterns.

   Using the Dial Indicator Gauge with Holding Fixture, measure and record the differential ring gear and pinion backlash.

   • Check the backlash in 4 equally spaced positions around the differential ring gear.
   • The tooth contact pattern can move only by adjusting backlash. The tooth contact pattern can move only in the direction of heel-to-toe and toe-to-heel. Depth of the tooth contact pattern is not adjustable. Contact Spicer Service at 1-800-826-4357 for assistance if unable to establish an acceptable tooth contact pattern within the limits of backlash.
     Fig 2: Measuring Differential Ring Gear And Pinion Backlash

     Courtesy of FORD MOTOR CO.
3. Remove the bolt and the rear anti-lock brake sensor.
   Fig 3: Locating Bolt And Rear Anti-Lock Brake Sensor

   Courtesy of FORD MOTOR CO.
4. Remove the 2 adjusting ring cotter pins.
   Fig 4: Locating Adjusting Ring Cotter Pins

   Courtesy of FORD MOTOR CO.
5. Loosen, but do not remove, the 6 bearing cap bolts.
   Fig 5: Locating Bearing Cap Bolts

   Courtesy of FORD MOTOR CO.

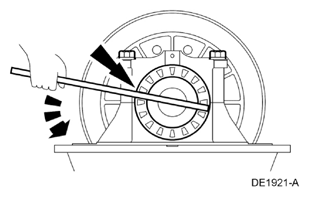

6. Relieve the bearing preload.
   • Loosen each differential bearing adjusting ring.
     Fig 6: Loosening Differential Bearing Adjusting Ring

     Courtesy of FORD MOTOR CO.
7. Remove the 6 differential bearing cap bolts, 2 bearing caps and 2 adjusting rings.
   Fig 7: Locating Bearing Cap Bolts

   Courtesy of FORD MOTOR CO.
8. Carefully lift the differential subassembly out of the carrier.
9. Inspect the differential side bearing surfaces and differential side bearing cups for pitting, wear or overheating. Install new components as necessary.
   Fig 8: Inspecting Differential Side Bearing Surfaces And Differential Side Bearing Cups

   Courtesy of FORD MOTOR CO.

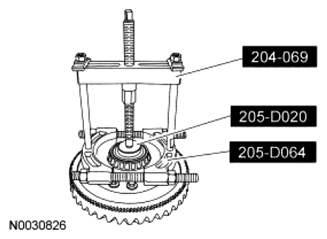

10. Using the Bearing Puller, Front Wheel Hub Remover/Installer and Step Plate, remove the differential side bearings if worn or damaged.
    Fig 9: Removing Differential Side Bearings

    Courtesy of FORD MOTOR CO.
11. Remove and DISCARD the 12 ring gear bolts.
    Fig 10: Identifying Ring Gear Bolts

    Courtesy of FORD MOTOR CO.
12. Place the differential assembly in a suitable press supported on the ring gear.
13. NOTE: The differential case will fall after separation. Support the case so it will not result in damage to the component or equipment.
    NOTE: It should not require more than 3 tons of press load to separate the ring gear from the differential case.
    NOTE: It may be necessary to press in more than one position to free the ring gear from the case.

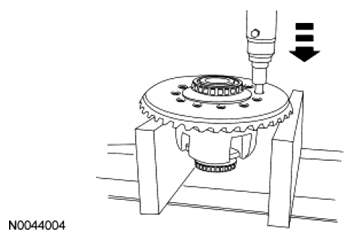

    The press arbor will push on the differential ring gear bolt to separate the ring gear half of the differential from the cross shaft half of the assembly.

    Fig 11: Pressing Differential Ring Gear Bolt To Separate Ring Gear

    Courtesy of FORD MOTOR CO.
14. NOTE: Discard the anti-lock speed sensor ring if separating it from the ring gear side case half.

    If necessary, remove the anti-lock speed sensor ring.

    Fig 12: Identifying Anti-Lock Speed Sensor Ring

    Courtesy of FORD MOTOR CO.
15. NOTE: Alkaline cleaning solutions will damage machine surfaces. Use only emulsion cleaners or petroleum-based cleaning solvents.
    NOTE: Use soft, clean, lintless towels to dry the components.
    NOTE: After drying, lightly coat the parts with rust inhibitor or clean lubricant to prevent damage from corrosion. Wrap all parts that are going to be in storage for a prolonged period in wax paper.
    NOTE: For Truetrac® differentials, submerge the entire differential assembly in a suitable solvent to wash away contaminants from within the housing.

    Clean and dry the components.

16. The Truetrac® differential assembly is non-repairable. Discard the entire assembly if it is worn or damaged.
    Fig 13: Locating Truetrac Differential Assembly

    Courtesy of FORD MOTOR CO.

    S110 axles

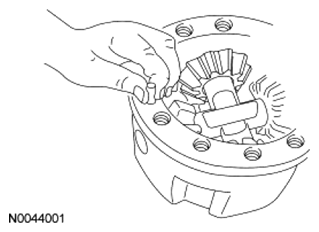

17. With a conventional differential, lift out the side gear.
    Fig 14: Identifying Side Gear

    Courtesy of FORD MOTOR CO.

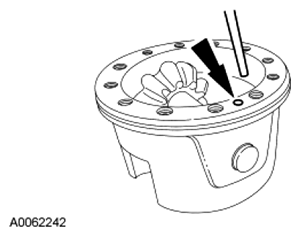

18. Remove the differential pinion cross shaft lockpin.
    Fig 15: Locating Differential Pinion Cross Shaft Lock Pin

    Courtesy of FORD MOTOR CO.
19. NOTE: Discard all gears in sets if one or more sustains wear or damage or damage to components may occur.

    Remove the pinion cross shaft.

    Fig 16: Identifying Pinion Cross Shaft

    Courtesy of FORD MOTOR CO.
20. Remove the 2 pinion gears and pinion thrust washers.
21. Remove the inner side gear and thrust washer.
    Fig 17: Identifying Inner Side Gear And Thrust Washer

    Courtesy of FORD MOTOR CO.

    S130 axles

22. Remove the outer side gear.
    Fig 18: Removing Outer Side Gear

    Courtesy of FORD MOTOR CO.
23. Remove the differential shaft lockpins by turning the differential case opening facing down. Using a hammer, lightly tap the side of the case to free the lockpins.
    Fig 19: Tapping Side Of Differential Case

    Courtesy of FORD MOTOR CO.
24. Remove the lockpins.
    Fig 20: Removing Lockpins

    Courtesy of FORD MOTOR CO.
25. Remove the halfshaft pinion shafts, pinions and washers.
    1. Remove the halfshaft.
    2. Remove the pinion and washer.
       Fig 21: Removing Halfshaft Pinion Shafts, Pinions And Washers

       Courtesy of FORD MOTOR CO.
26. Remove the full shaft pinion shaft, pinions and washers.
    Fig 22: Identifying Full Shaft Pinion Shaft, Pinions And Washers

    Courtesy of FORD MOTOR CO.
27. Remove the inner side gear and thrust washer.
    Fig 23: Identifying Inner Side Gear And Thrust Washer

    Courtesy of FORD MOTOR CO.
