Gear Set Identification

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

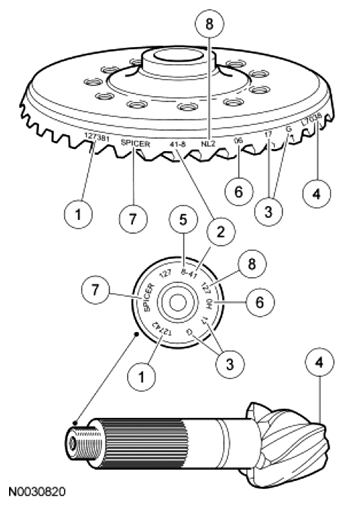

Fig 1: Identifying Gear Set
G06776853Courtesy of FORD MOTOR CO.
Item Description
1 Part number
2 Number of ring gear teeth
3 Manufacturing date
4 Matching gear set number
5 Number of pinion teeth
6 Date code
7 Genuine Dana Spicer parts
8 Heat code
