Removal And Installation: Hublock: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Dual rear wheel vehicles

Remove the front wheels and tires. For additional information, refer to WHEELS AND TIRES .
Remove and discard the 8 hub extender nuts and the hub extender.
- Discard the nuts.

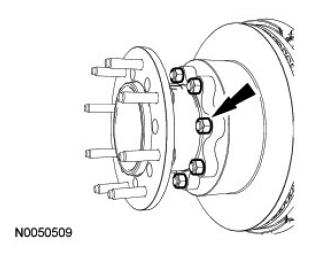

  Fig 1: Locating Front Wheel Hub Extender Nuts
  Courtesy of FORD MOTOR CO.
All vehicles
Loosen the hublock screws 1 to 2 turns.
Use a small pry bar, carefully pry around the entire hub flange to release the gasket.

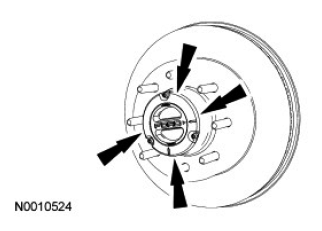

Fig 2: Removing Hublock Gasket
Courtesy of FORD MOTOR CO.
Remove and discard the 3 hublock screws.

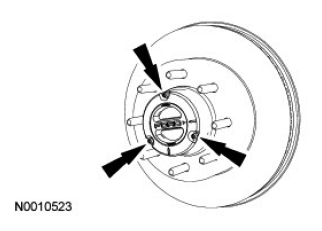

Fig 3: Locating Hublock Mounting Screws
Courtesy of FORD MOTOR CO.
NOTE: Wiggle the axle shaft while sliding the hublock off of the splines to ease removal.

Use a small pry bar, carefully pry around the entire hub flange and remove the hublock from the wheel hub.
Remove the old gasket material completely and discard the O-ring.
Clean the O-ring seal contact area as necessary to provide a good seal.
