Gearshift Linkage Adjustment
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
- Inspect the transfer case shifter assembly for:
- visible signs of damage.
- corroded or damaged pivot bushings.
- Repair or install new components as necessary.
- Inspect the shift control rod for:
- visible damage.
- bent or damaged rod.
- correct control rod for engine application.
- Repair or install new components as necessary.
- Shift the transfer case to the 4 High (4H) position.

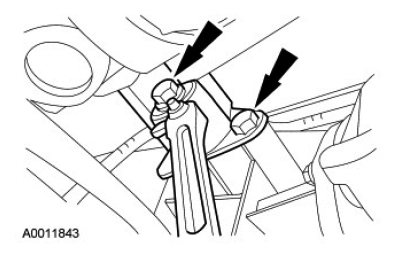

- Loosen the 2 transfer case shifter-to-transmission adapter mounting bolts.
- To install, tighten to 115 Nm (85 lb-ft).
- Verify the transfer case shifter is still in the 4 High (4H) detent position and hold the shifter handle against the 4 High (4H) stop while tightening the 2 transfer case shifter-to-transmission adapter mounting bolts.
- Lower the vehicle.
- Test the system for normal operation.
