Wheel Bearings, Wheel Hub Seal and Wheel Bearing Cups: F-350
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

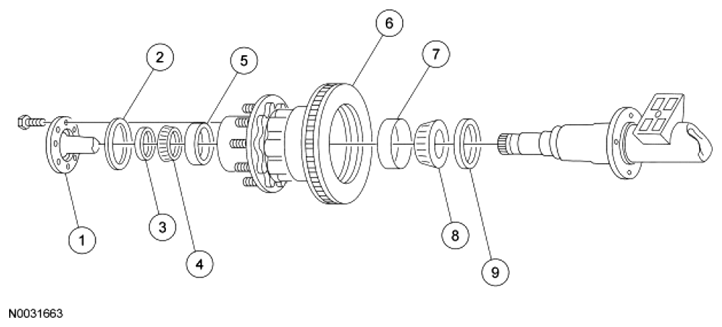

| Item | Part Number | Description |
|---|---|---|
| 1 | 4234 | Axle shaft |
| 2 | - | O-ring (part of 4234) |
| 3 | 1124 | Hub nut |
| 4 | 1240 | Outer rear wheel bearing |
| 5 | 1239 | Rear wheel bearing outer cup |
| 6 | 1109 | Rear hub and rotor assembly |
| 7 | 1243 | Rear wheel bearing inner cup |
| 8 | 1244 | Inner rear wheel bearing |
| 9 | 1175 | Rear hub seal |
