Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in SERVICE INFORMATION . Failure to follow this instruction may result in serious personal injury.

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: F250, F350 shown, F450, F550 similar.

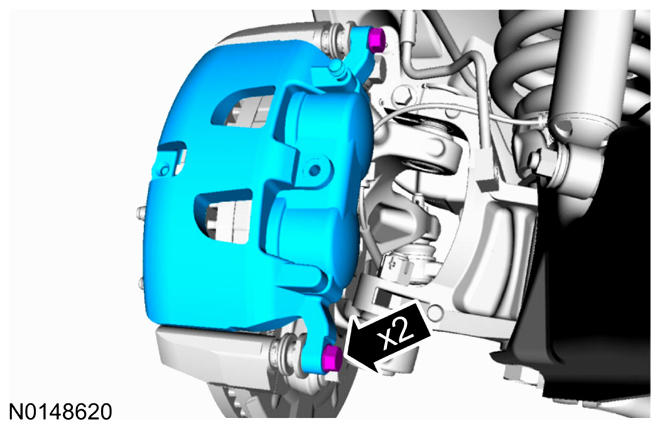

Remove the wheel and tire. Refer to WHEELS AND TIRES .
- To install, tighten to 48 Nm (35 lb-ft).
- To install, on F-250, F-350, tighten to 75 Nm (55 lb-ft).
- To install, on F-450, F-550, tighten to 63 Nm (46 lb-ft).
