Wheel Bearing and Wheel Hub: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| High Temperature 4x4 Front Axle and Wheel Bearing Grease XG-11 |
WSS-M1C267-A1 |

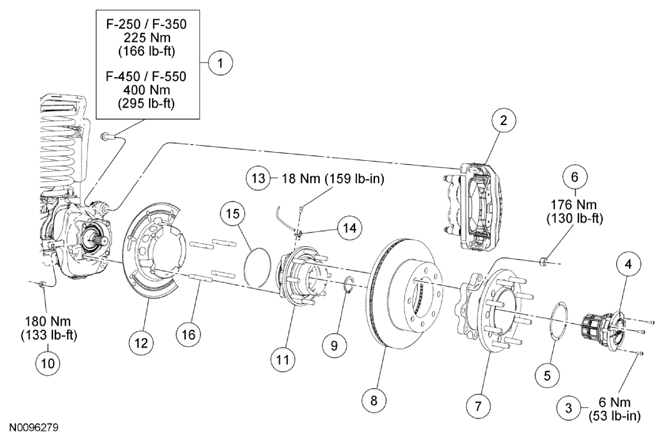

| Item | Part Number | Description |
|---|---|---|
| 1 | W709789 | Brake caliper anchor plate bolt (2 required) |
| 2 | 2B121 LH/2B210 RH | Brake caliper |
| 3 | W709526 | Hublock screw |
| 4 | 3B396 | Hublock |
| 5 | 1K106 | Hublock gasket |
| 6 | W520506 | Wheel extension nut (part of 1A104) (8 required) |
| 7 | 1A104 | Wheel extension |
| 8 | 1125 | Brake disc |
| 9 | 1B093 | Axle shaft snap ring |
| 10 | 1107 | Wheel bearing and wheel hub nut (part of 2B663) (4 required) |
| 11 | 2B663 | Wheel bearing and wheel hub |
| 12 | 2K005 | Brake disc shield |
| 13 | - | Wheel speed sensor bolt |
| 14 | 2C204 | Wheel speed sensor |
| 15 | 4A322 | Wheel bearing and wheel hub O-ring |
| 16 | 1120 | Wheel bearing and wheel hub stud (part of 2B663) |
