Ball Joint: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel knuckle. For additional information, refer to WHEEL KNUCKLE .
  2. Position the wheel knuckle in a vise and remove the snap ring from the lower ball joint.
  3. NOTE: To avoid damage to the components, do not use heat to aid ball joint removal.

    Using the C-Frame and Screw Installer/Remover and Ball Joint Remover/Installer, remove the lower ball joint.

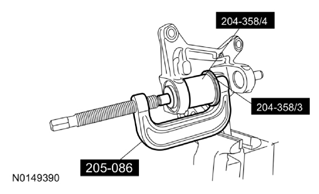

    Fig 1: Removing Lower Ball Joint
    G08596553Courtesy of FORD MOTOR CO.
  4. Using the C-Frame and Screw Installer/Remover and Ball Joint Remover/Installer, remove the upper ball joint.

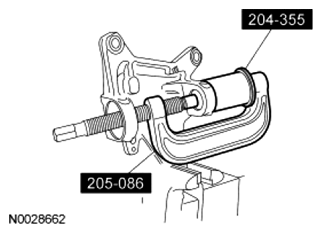

    Fig 2: Removing Upper Ball Joint
    G06776409Courtesy of FORD MOTOR CO.
