Wheel Studs - Dual Rear Wheel (DRW): Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOLS DESCRIPTION

C-Frame and Clamp Assembly
211-023 (T74P-3044-A1)

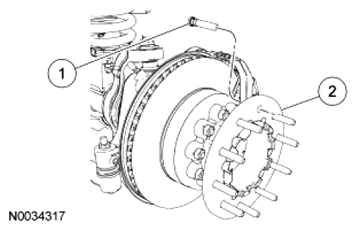

Fig 1: Identifying Wheel Stud And Wheel Extension (Dual Rear Wheel)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	1107	Wheel stud
2	1A01	Wheel extension
