Wheel Spindle - F-250, F-350: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTION
| Pitman Arm Puller 211-003 (T64P-3590-F) |

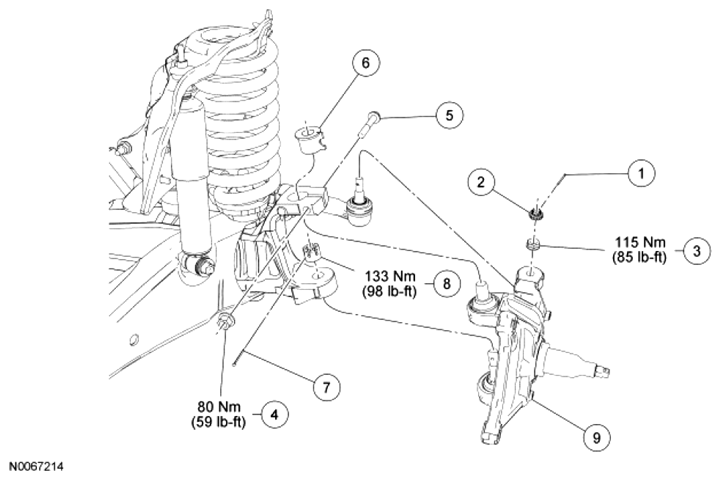

NOTE:
RH shown, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W525287 | Cotter pin |
| 2 | W711374 | Tie-rod end nut retainer |
| 3 | W711374 | Tie-rod end nut |
| 4 | W520114 | Upper ball joint nut |
| 5 | N606085 | Upper ball joint bolt |
| 6 | 3B404 | Camber adjustment sleeve |
| 7 | W525287 | Cotter pin |
| 8 | 383489 | Lower ball joint nut |
| 9 | 3106 LH/3105 RH | Wheel spindle |
