Wheel Knuckle - F-450, F-550: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTION
| C-Frame and Screw Assembly 211-023 (T74P-3044-A1) |
|
| Pitman Arm Puller 211-003 (T64P-3590-F) or Equivalent |
|
| Separator, Ball Joint 204-592 |
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

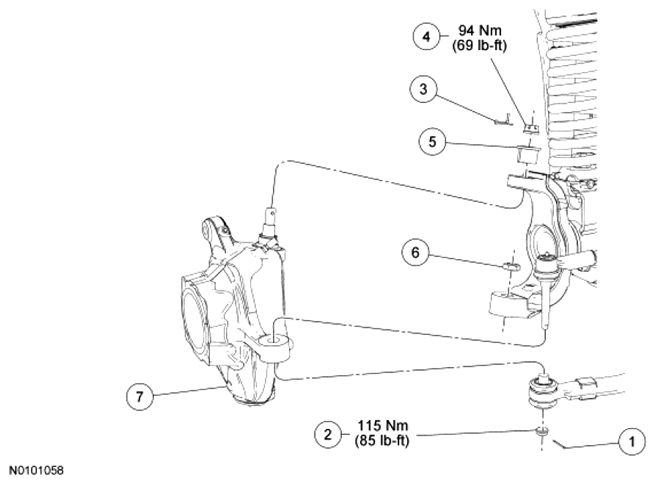

NOTE:
RH shown, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W525287 | Cotter pin |
| 2 | W711373 | Tie-rod end nut |
| 3 | W525287 | Cotter pin |
| 4 | 3A049 | Upper ball joint nut |
| 5 | 3B404 | Camber adjustment sleeve |
| 6 | 3A050 | Lower ball joint nut |
| 7 | 3131 LH/3130 RH | Wheel knuckle |
