Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire. For additional information, refer to WHEELS AND TIRES .
  2. Disconnect the wheel speed sensor electrical connector.
  3. Remove the wheel speed sensor harness-to-radius arm bolt.
    • To install, tighten to 15 Nm (133 lb-in).

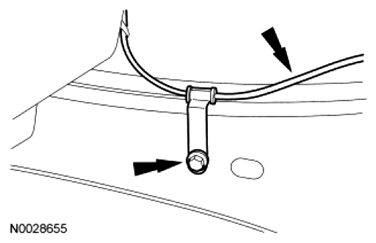

      Fig 1: Locating Wheel Speed Sensor Harness-To-Radius Arm Bolt
      G06776311Courtesy of FORD MOTOR CO.
  4. Remove the 2 wheel speed sensor harness-to-axle bolts.
    • To install, tighten to 15 Nm (133 lb-in).
      Fig 2: Locating Wheel Speed Sensor Harness-To-Axle Bolts
      G06776312Courtesy of FORD MOTOR CO.
  5. Remove the wheel speed sensor harness-to-wheel knuckle bolt.
    • To install, tighten to 15 Nm (133 lb-in).
  6. Remove the 8 wheel extension nuts and the wheel extension.
    • To install, tighten to 176 Nm (130 lb-ft).
  7. NOTE: Do not allow the brake caliper to hang from the brake hose or damage to the hose can occur.

    Remove the 2 caliper anchor plate bolts and position the caliper assembly aside.

    • Support the caliper using mechanic's wire.
    • To install, tighten to 400 Nm (295 lb-ft).
  8. Remove the brake disc.
  9. Remove the 4 nuts and the wheel bearing and wheel hub.
    • Discard the nuts.
    • To install, tighten the new nuts to 180 Nm (133 lb-ft).
  10. Remove the brake disc shield.
  11. Remove the wheel speed sensor bolt and the sensor.
    • To install, tighten to 25 Nm (18 lb-ft).
  12. Remove and discard the O-ring.
    Fig 3: Locating O-Ring
    G06776313Courtesy of FORD MOTOR CO.

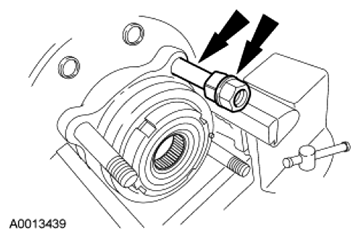

  13. Position the wheel bearing and wheel hub in a vise with protective caps and remove the 4 studs using 2 mounting nuts.
    Fig 4: Locating Wheel Bearing And Wheel Hub Studs Or Mounting Nuts
    G06776314Courtesy of FORD MOTOR CO.
  14. NOTE: Make sure that the wheel hub and brake disc mounting surfaces are clean and free of foreign material or excessive runout and/or vibration may occur.

    To install, reverse the removal procedure.
